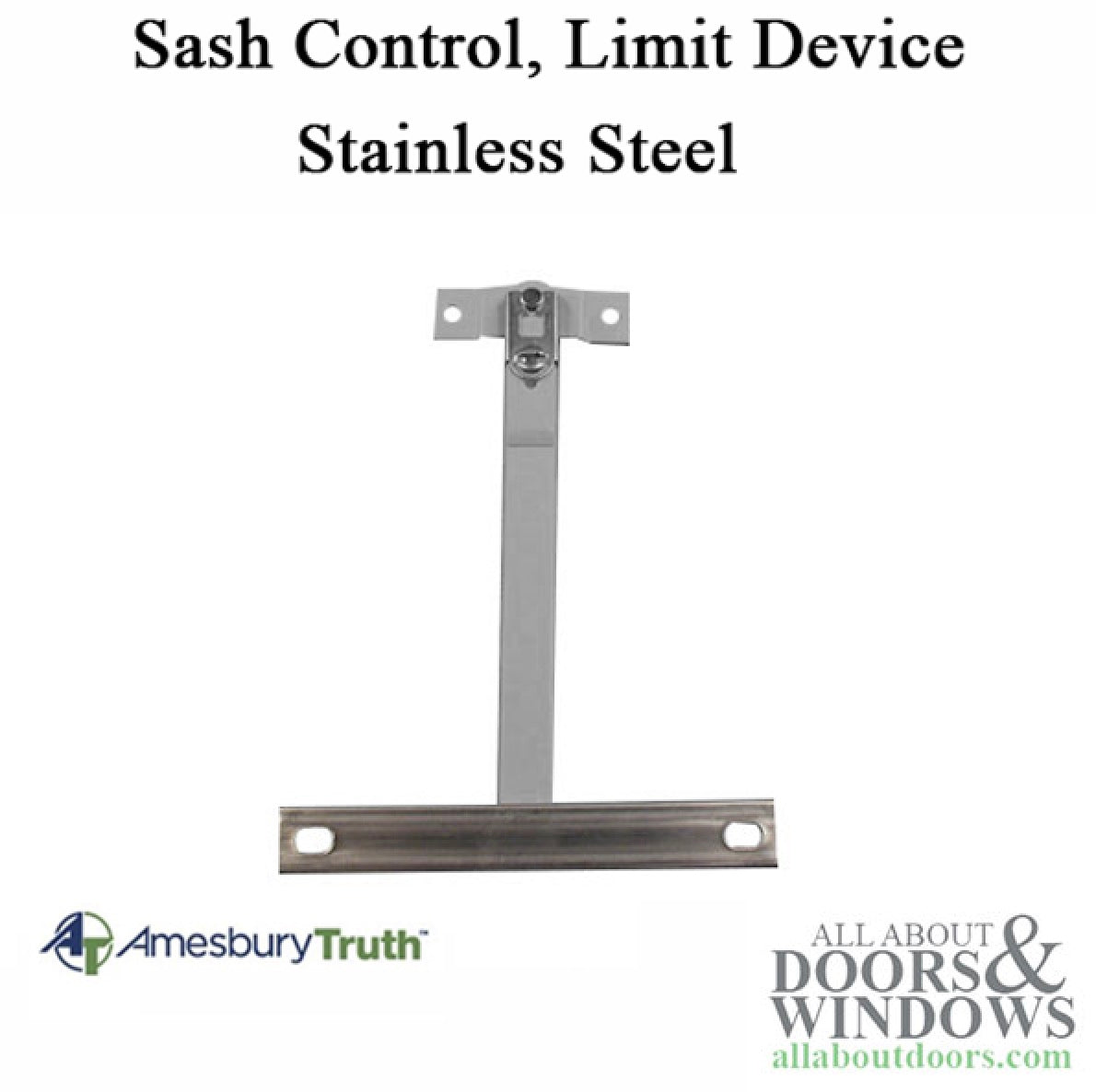

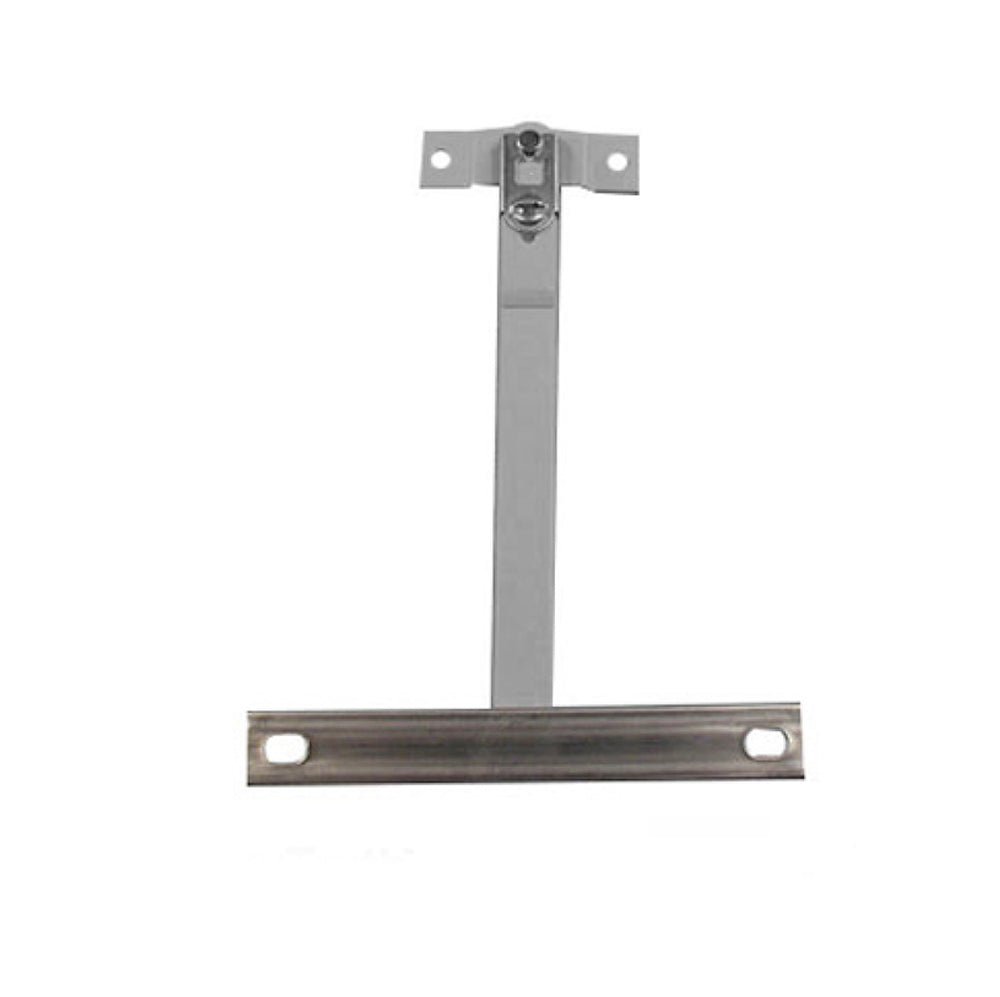

Sash Control, Limit Device - SSAmesbury Truth 99.24.00.100 two (2) piece Limit arm and Bracket to restrict how far window opens
The Sash Control Devices is attached to sash and frame. Limits window opening on 2 bar casement window hinges

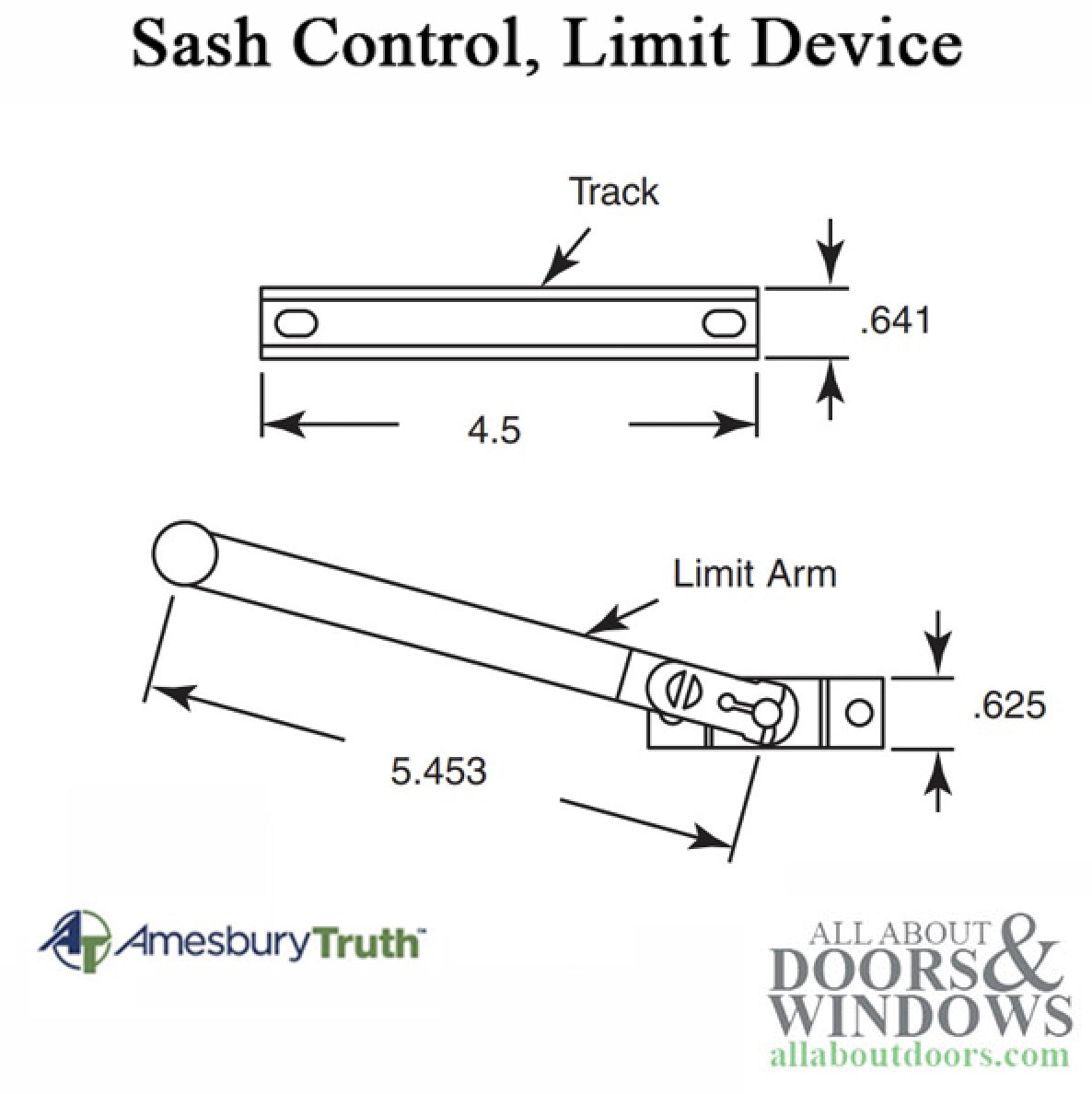

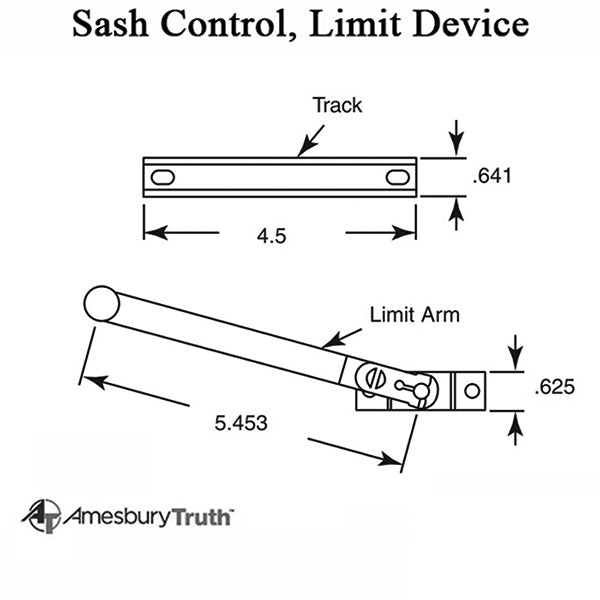

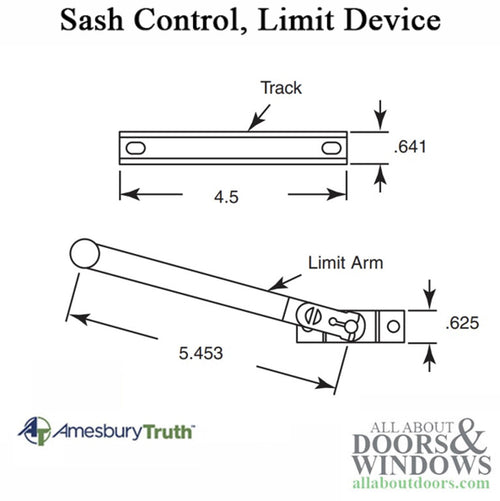

Includes mounting track and limit arm with detach clip

Track Length: 4-1/2 inches
Track Width: 41/64 inch
Limit Arm Length: 5-29/64 inches
Limit Arm Shoe Width: 5/8 inch
Material: Stainless Steel

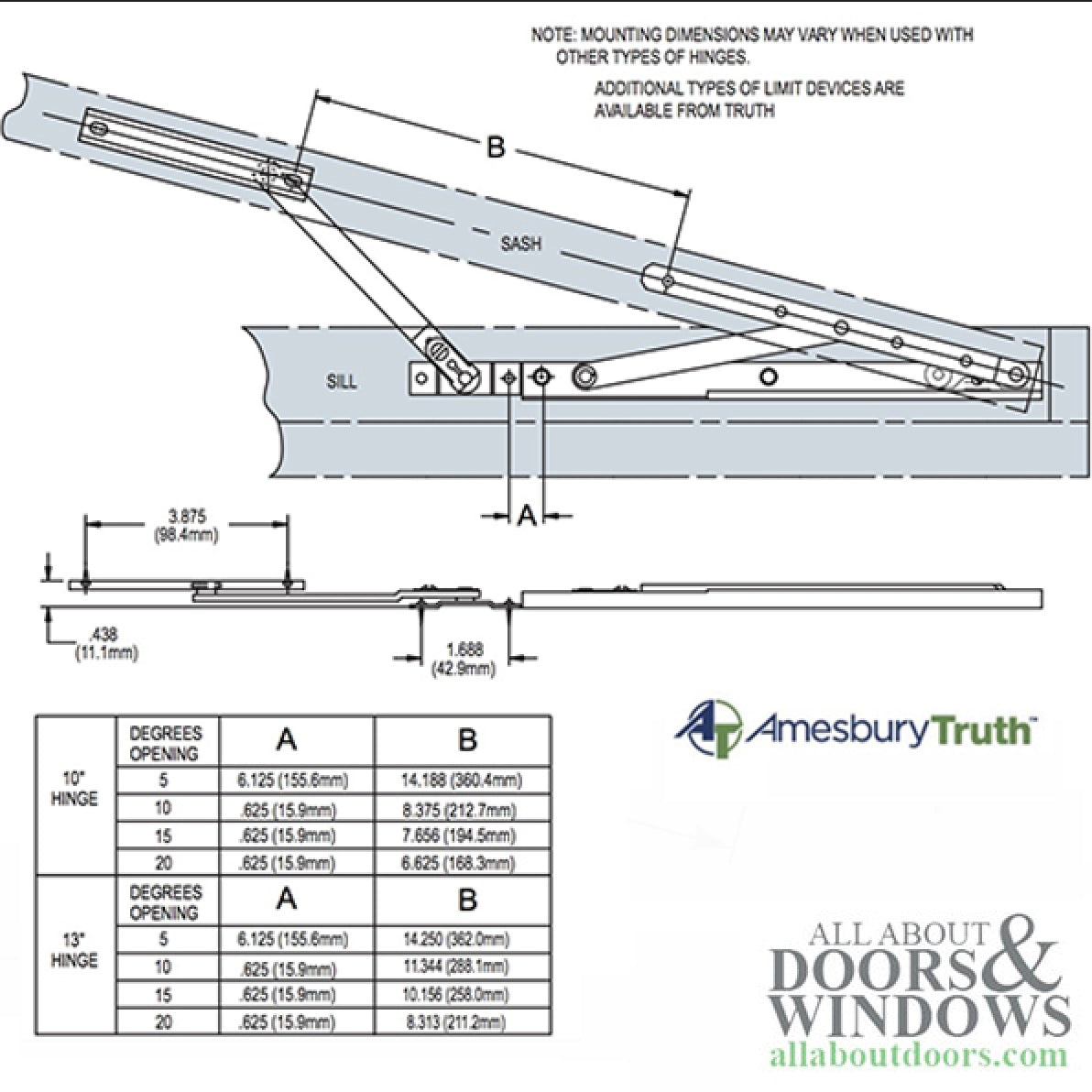

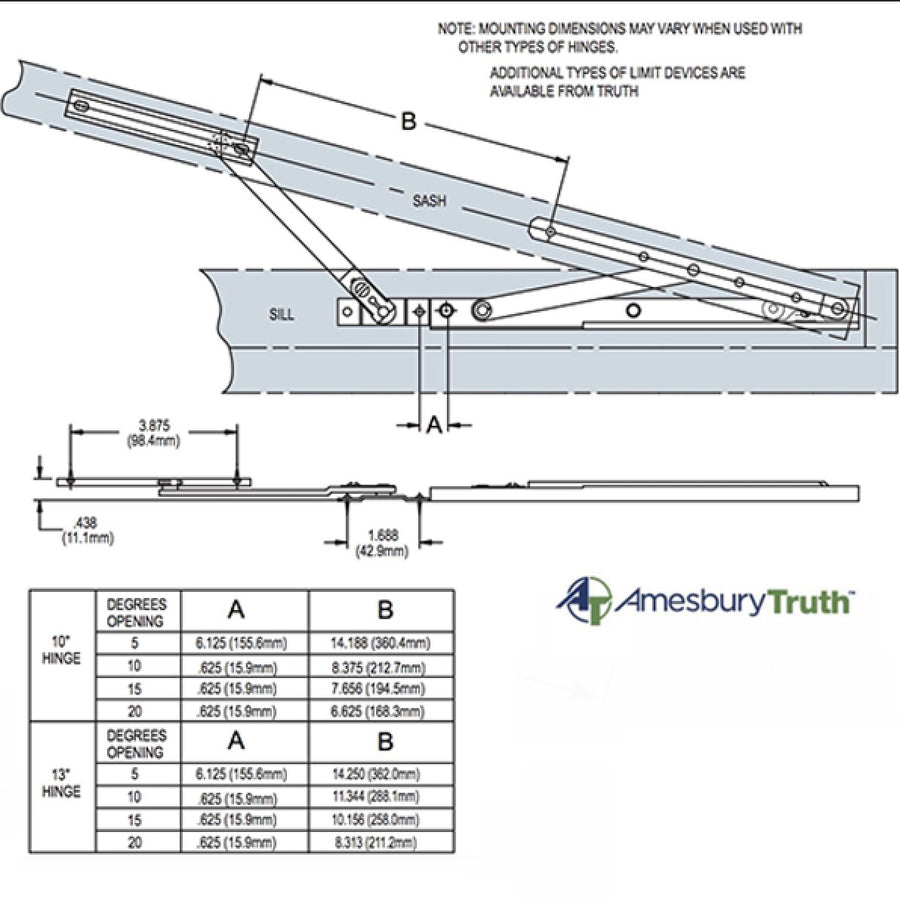

Used with Concealed Hinges:
14.75 - 10 inch
14.97 - 13 inch


Related Truth Hardware
99.20.00.001 Limit Device - Steel, E-Gard® corrosion resistant finish
99.24.00.100 Limit Device - Stainless Steel

Additional Information:
Truth Limit Device is designed to restrict the opening on projected or casement windows. When properly installed and operated, the limit device will prevent damage to casement and awning windows under high winds in high-rise applications. This limit device is used by several window manufacturers.
Recommended Screws: #7 x .720 Philips, Pan Head, Steel Sheet Metal Screws and #7 x .750 Phillips, Pan Head, Stainless Steel Sheet Metal Screws. Actual screw size may vary depending on application and window material.
