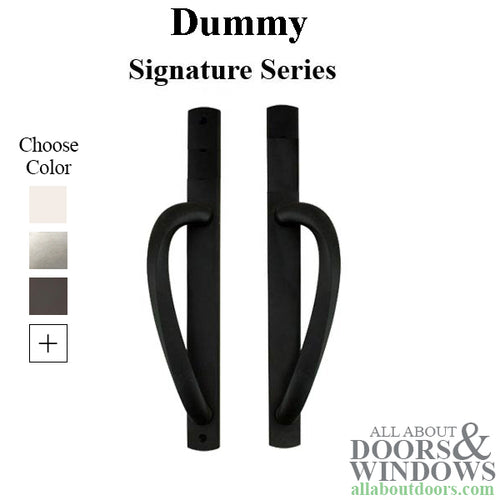

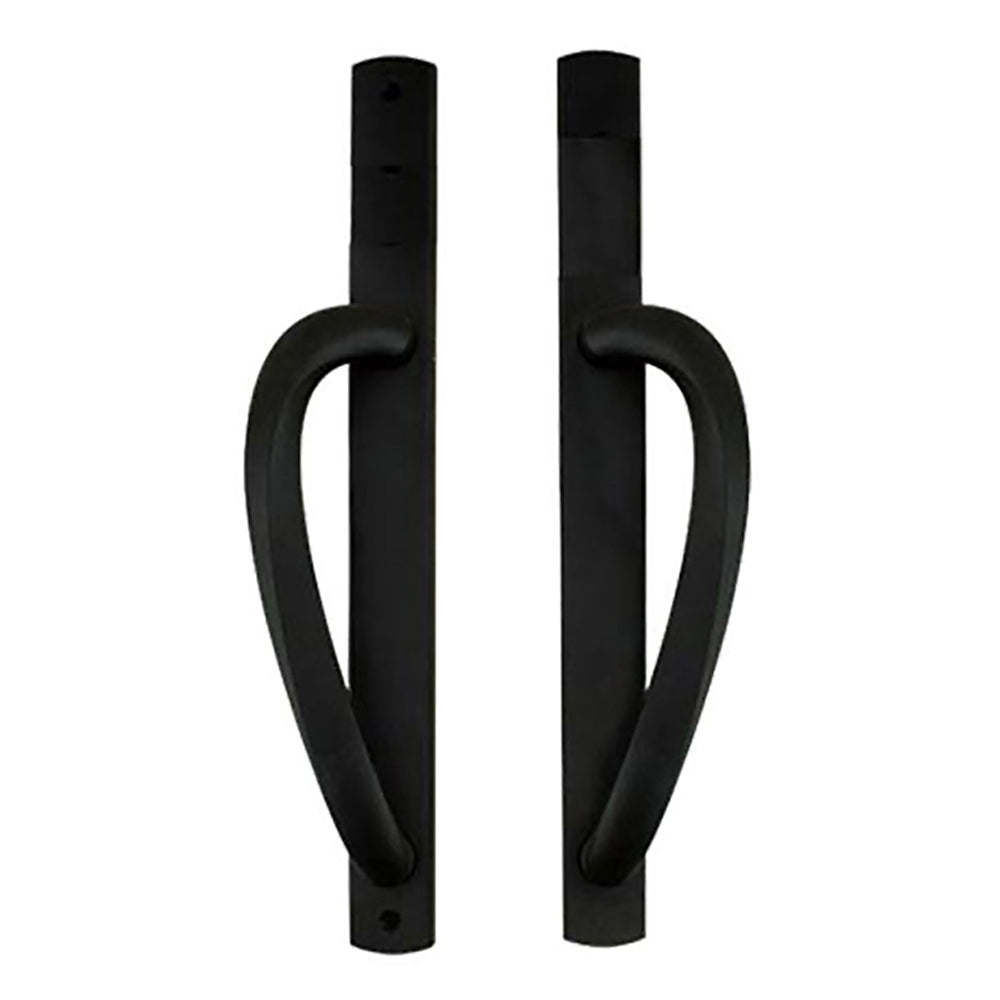

Truth Dummy curved top sliding Door Handleset Trim - Faux Oil Rubbed Bronze

Signature Series Curved Top Sliding Door Hardware

Replaces many styles and brands including Anderson and doors with standard 3-15/16" screw hole handle sets.

Some applications may need to drill additional hole in door to accommodate bottom screw

Used on single and dual locking 2-point lock mechanisms.

This style of handle has 3 functions:

1. Non-Keyed

2. Keyed, Schlage SC1, Optional Kwikset / Weiser keyway

3. Dummy

Function: Dummy, Fixed Handles

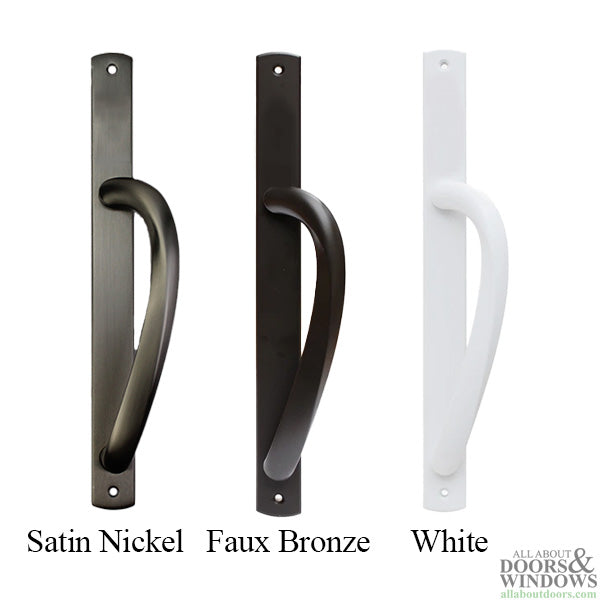

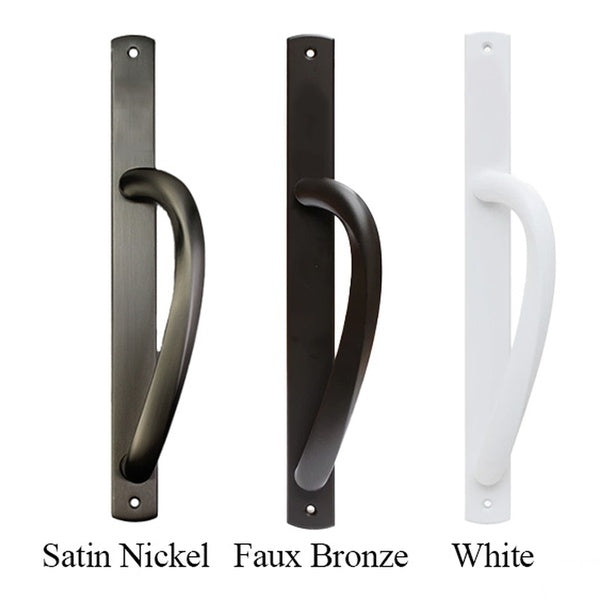

Color / Finish: Faux Oil Rubbed Bronze or White

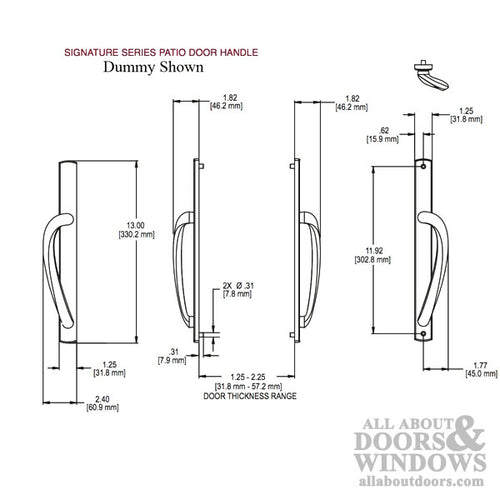

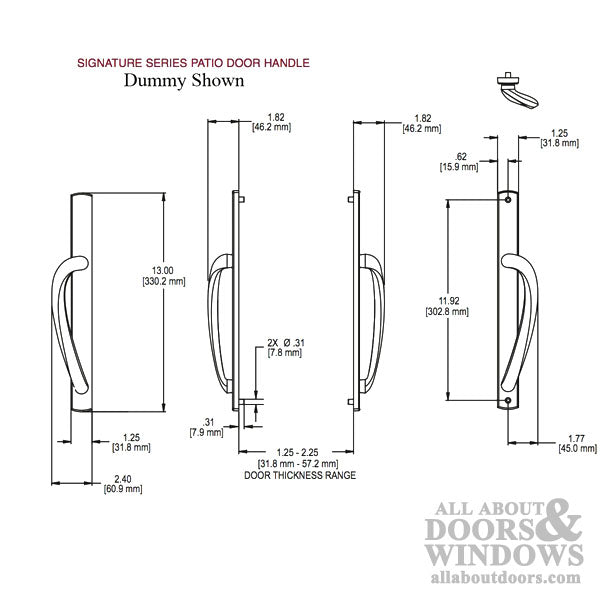

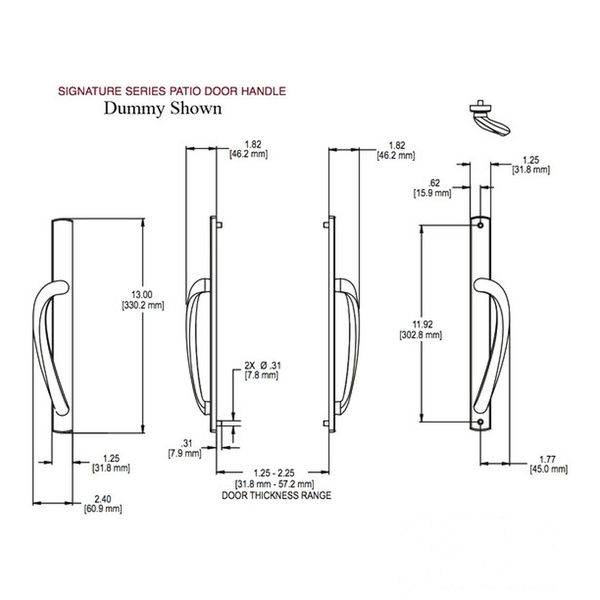

Installation Screw Holes: 11-15/16 inch  (302.8mm)

Installation Screws: 8-32

Escutcheon Plate Width: 1-1/4 inch (31.8mm)

Escutcheon Plate Length: 13 inch (330.2mm)

Handle mounting screw holes: 7-3/8 inch

Handle Mounting Screws: 10-32 x 3/8

Thumb turn to top Installation hole: 2 inch

Material: Aluminum -  for Painted Finishes

Door thickness range: Comes with assorted screws

1-3/16 - 1-9/16 thick uses 1-3/4 inch screw

1-9/16 - 1-15/16 thick uses 2-1/8 inch screw

1-15/16 - 2-5/16 thick uses 2-1/2 inch screw
