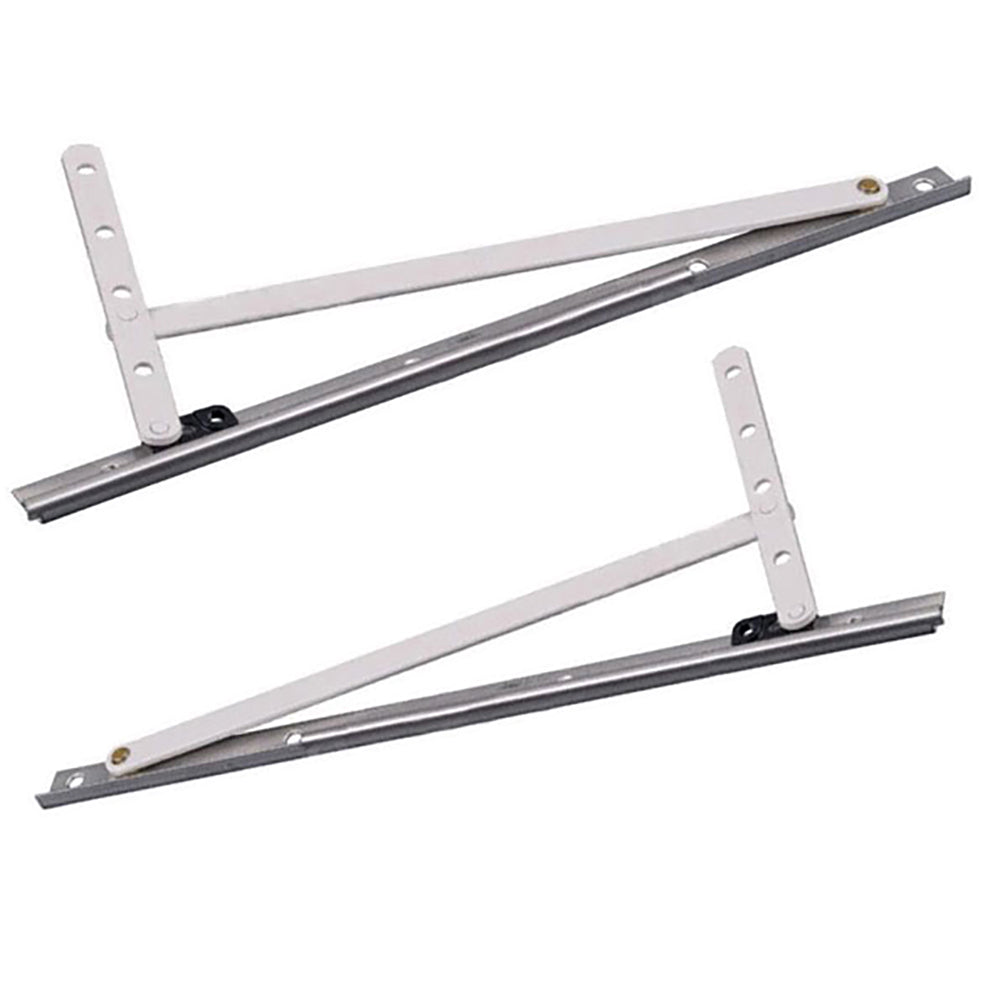

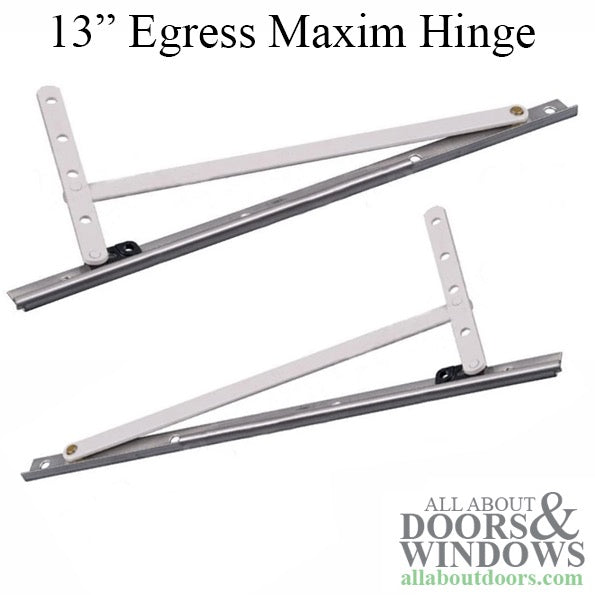

Truth Egress Casement Arm Hinge Kit - E-Gard

Part Number: 14.12.00-KIT-EG Price: $17.63

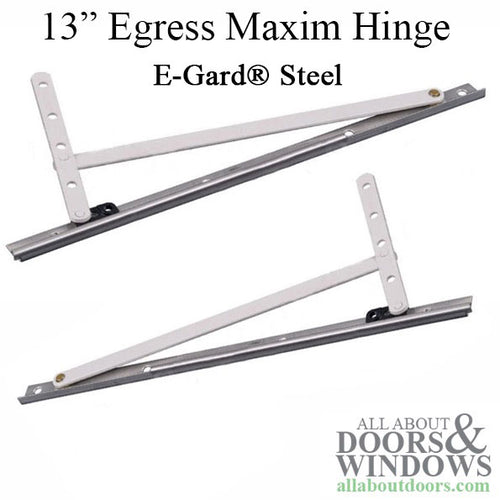

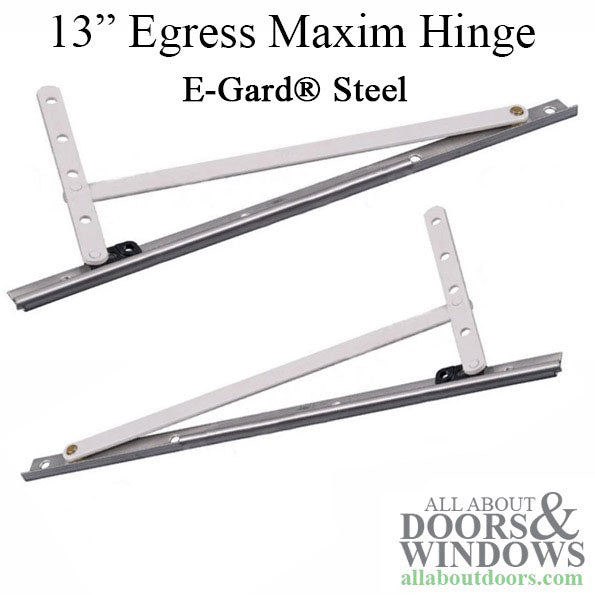

Truth 14.12. Series Egress 2-Bar concealed casement hinge assembly, 13 inch stainless steel track with Corrosion Resistant E-Gard® hinge arms.

This kit is comprised of four (4) Amesbury Truth components to make a pair of upper and lower hinge assemblies for casement windows. Hinge and track assemblies 14.12.00.005 and 14.12.00. 006
Screws are not included, type of screws required are determined by application and profile material.
This kit will fit left or right hand casement windows.

Application: Hinges mounted on left or right side of casement windows
Series: Egress, Hinge arm snaps onto track stud
Track Length: 13 inches
Track Width: 7/16 inch
Track Material: Stainless Steel with Brass Stud

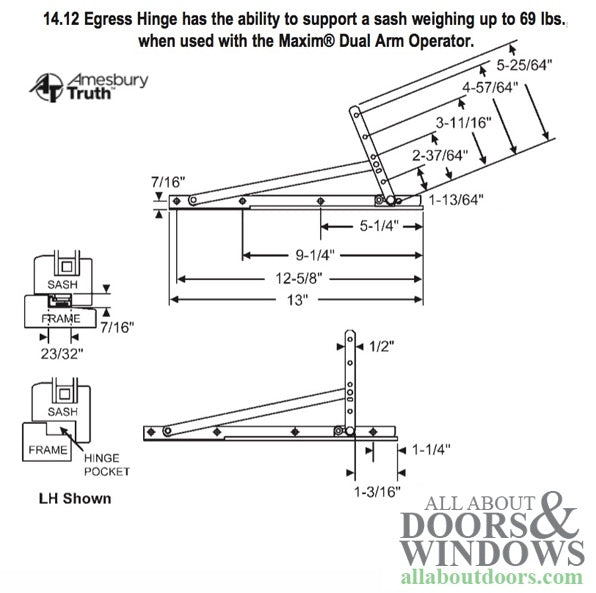

Hinge Opening: 2-3/16 inch 2.179 actual - (See additional images)

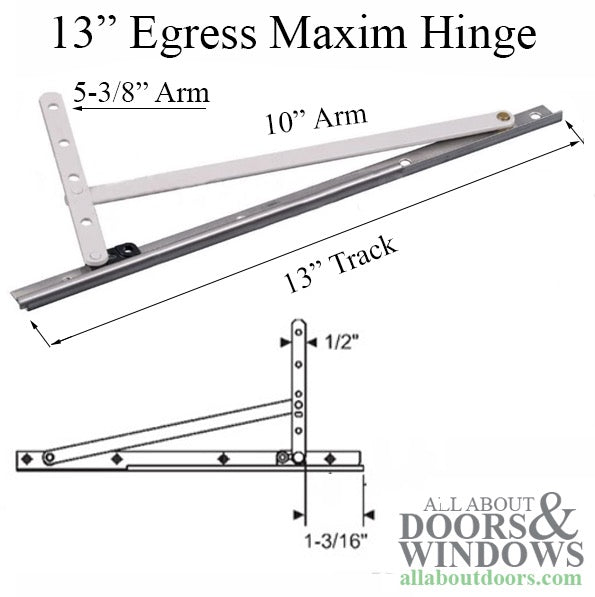

Arm Lengths: Long arm is 10 inches, shorter arm is 5-7/16 inches 5.452 actual
Arm Material: Corrosion resistant steel, E-Gard® finish
Stack Height: 7/16 inch
Handed: Yes, Right Hand and Left hand Pair
Sold in Pairs: 1 Upper, 1 Lower Hinge Assembly
Screws are NOT included, recommended size are #7 x 3/4 inch, stainless steel, Phillips Flat Head, Sheet Metal Screw. Actual screw will be determined by application and window material.
Markings on Hinges: Truth 32062, 31861
Note: Truth’s E-Gard® Hardware has a multi-stage coating process that produces a superior physical and aesthetic finish. Resistant to a wider range of corrosive materials, including industrial cleaning materials and environmental pollutants. Approximately three times better than common zinc plated finishes.

Additional Information:
Truth 14.12 Maxim Concealed Casement Window Hinge is NOT for use on awning windows. Used specifically with the Maxim Dual Arm Operator, in order to achieve egress access in required situations. Hinge arms are made of heavy gauge steel to give sash weight carrying capability of up to 69 pounds

EGRESS INFO:
International Building Code advises that every bedroom must contain at least one egress window.
Basically, The operable portion of the window must be at least 24-inches high and at least 20-inches wide, with a net area at least 5.7 square feet, with an opening no higher than 44 inches from the floor. Check local codes for more information.

Amesbury Truth ‘egress’ hardware essentially stays tucked in close to the jamb, with minimal ‘pivoting’ towards the center of the unit—thereby creating a greater net-opening width.
Egress hinge provides Approximately 2-5/8 inch wider opening to meet some code requirements on Emergency Exit.
