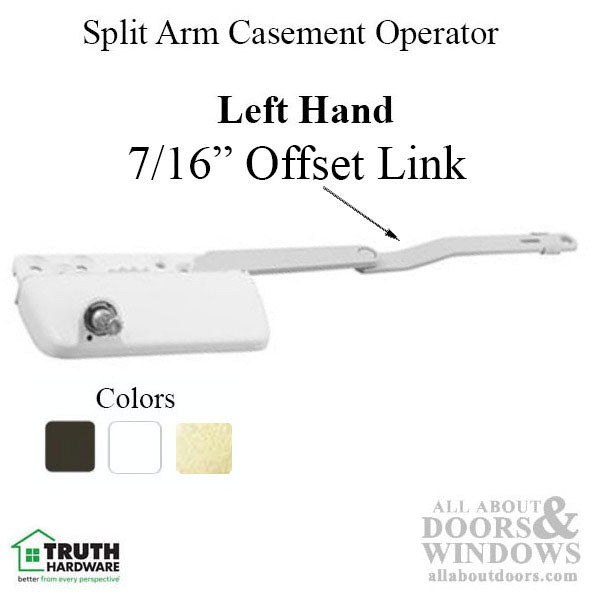

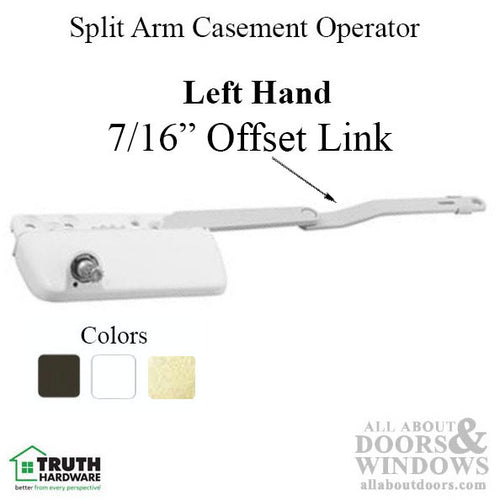

Truth split arm casement operator used by Hurd, Caradco and others

The new style Ellipse has smoothed contoured edges for an updated look.

Application: Sill mounted

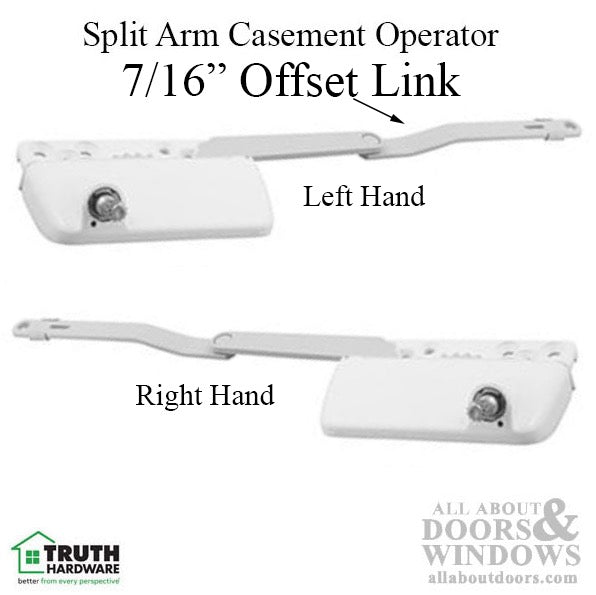

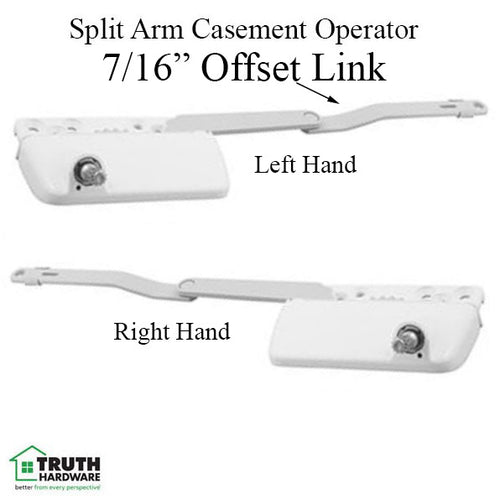

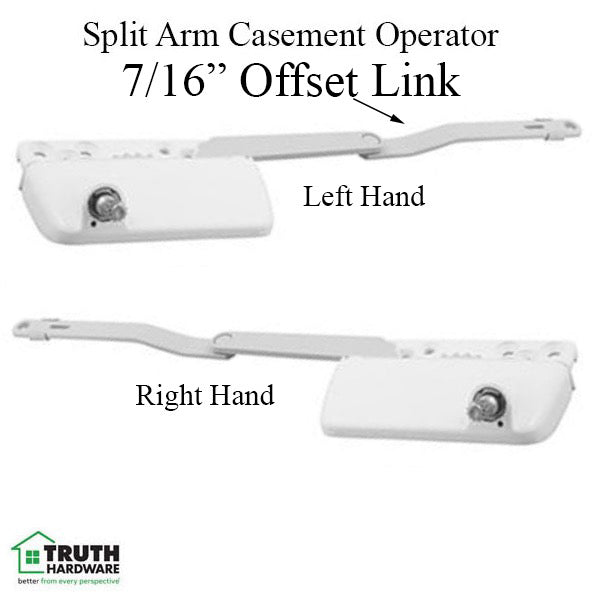

Handed: Yes Left or Right as shown

Color Options: White , Gold or Bronze

Link Mount: Under Main Arm

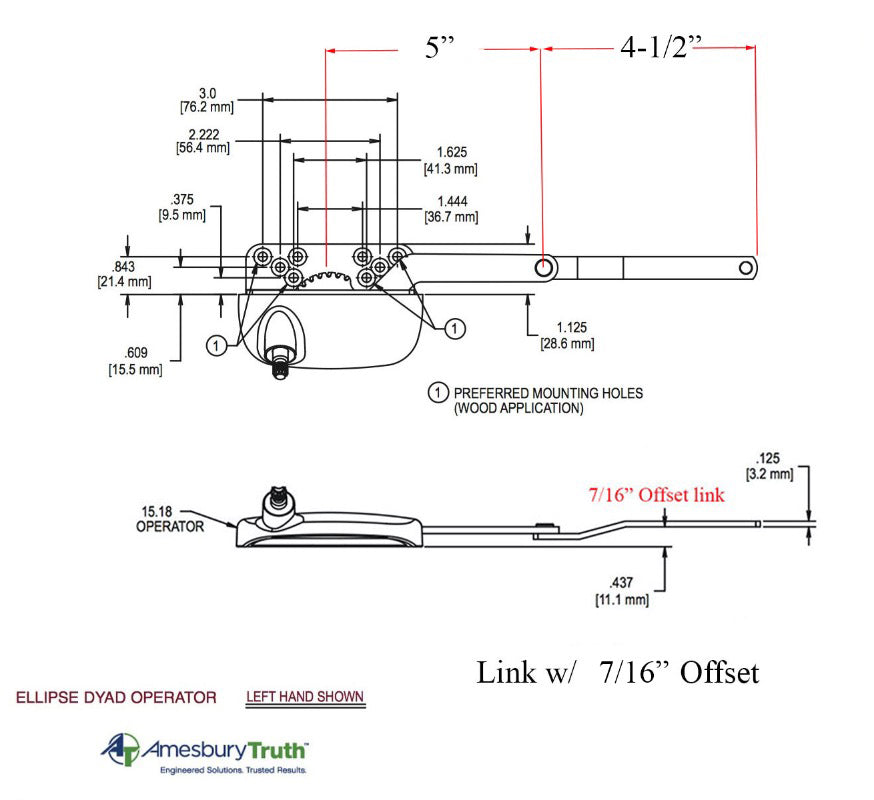

Link Shape: 7/16 inch Offset up

Note 1:

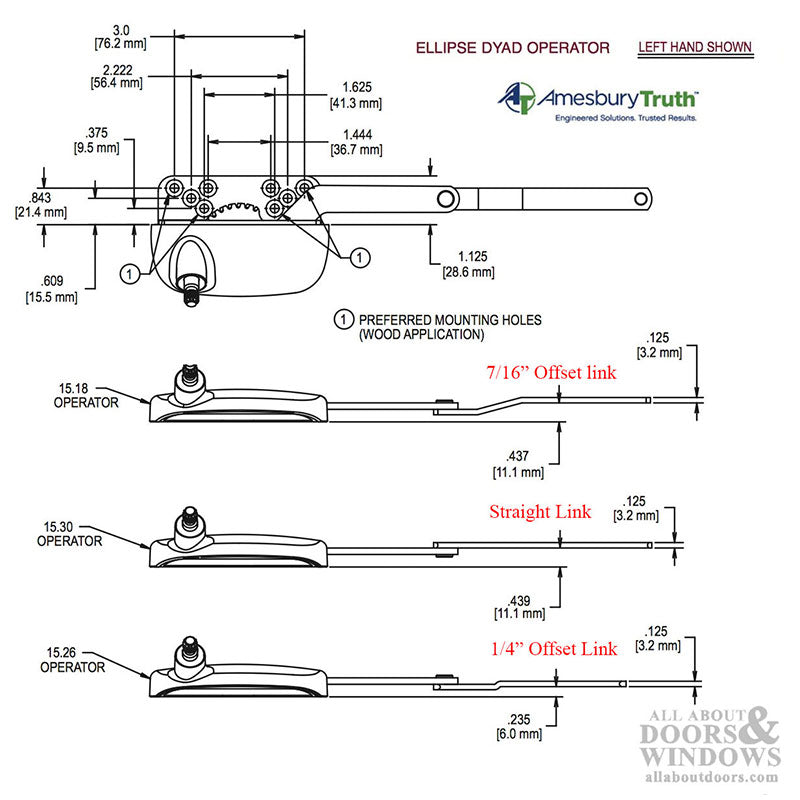

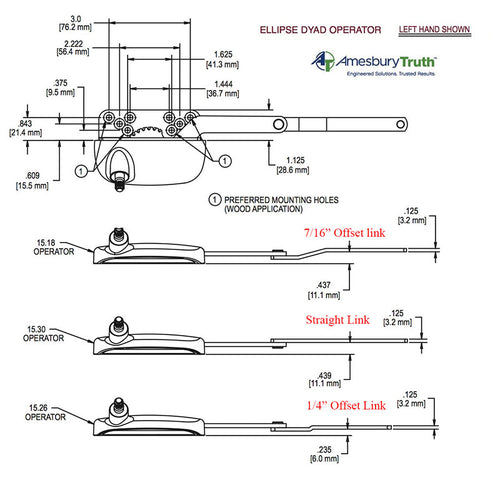

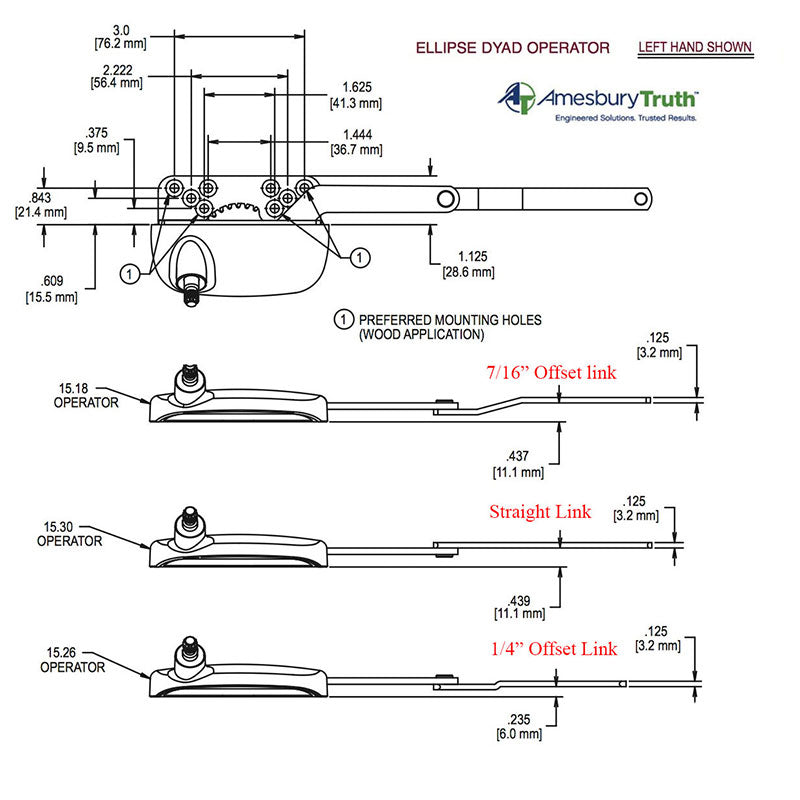

This operator comes with 3 different links on end of main arm.

1. Straight Link mounted on top of main arm.

2. 1/4 inch offset Link mounted below main arm

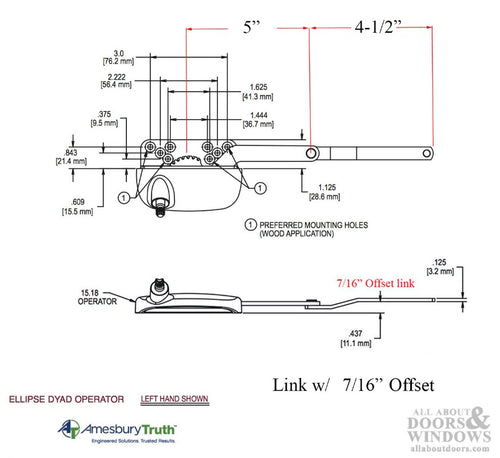

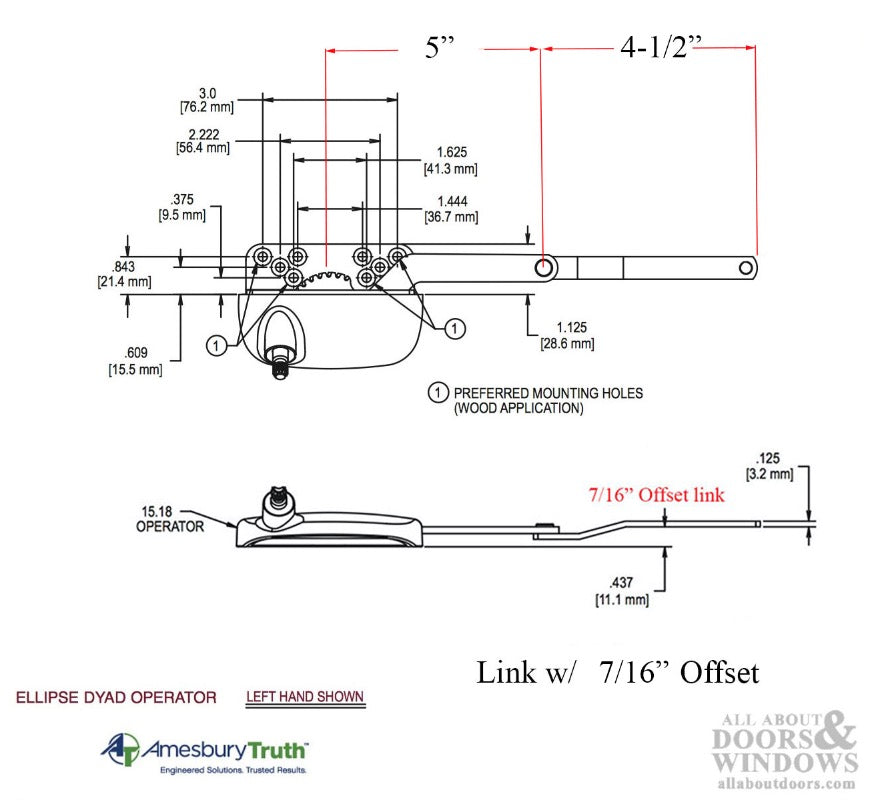

3. 7/16 inch offset Link mounted below main arm

Note 2:

The lengths and shape of links vary. Please compare all measurements
