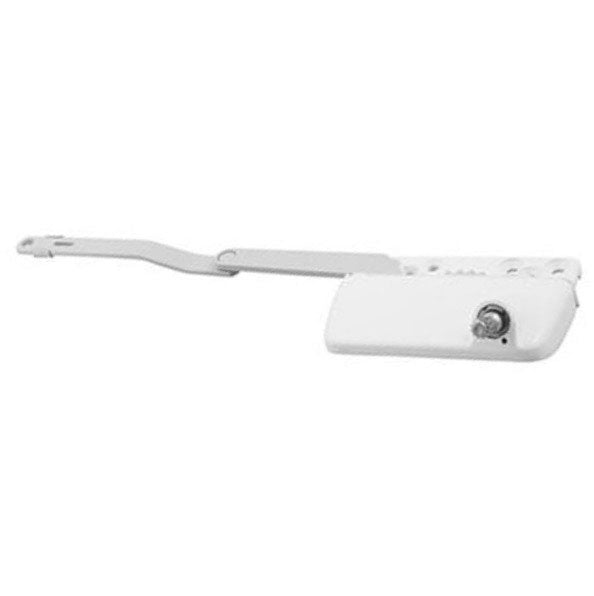

Truth Ellipse split arm Dyad operator, 7/16" offset Link, Right Hand

Part Number:55078
COLOR: - Gold
Please note, this product has been discontinued.

Truth split arm casement operator used by Hurd, Caradco and others

The new style Ellipse has smoothed contoured edges for an updated look.


Application: Sill mounted

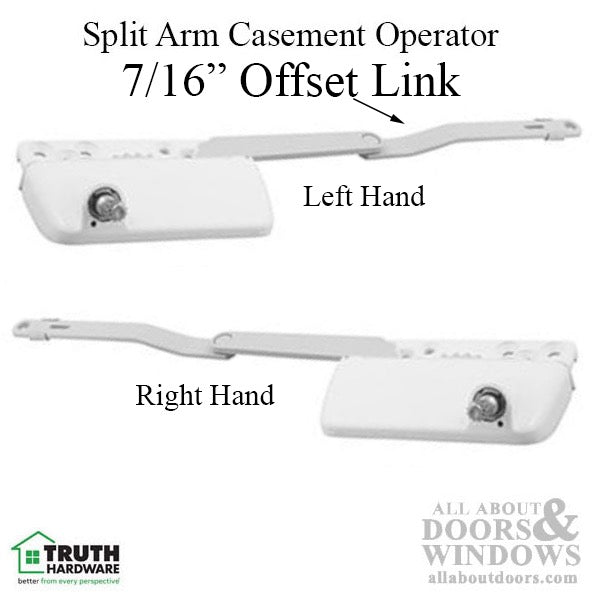

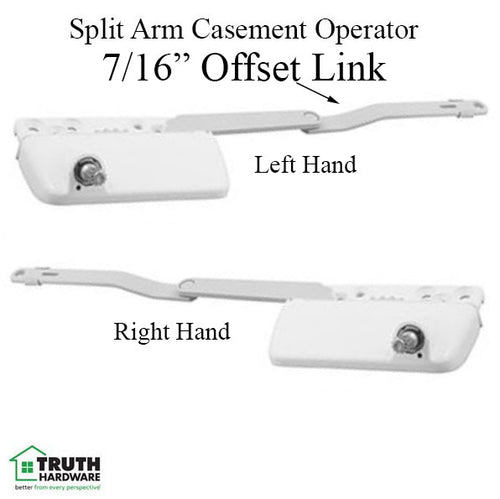

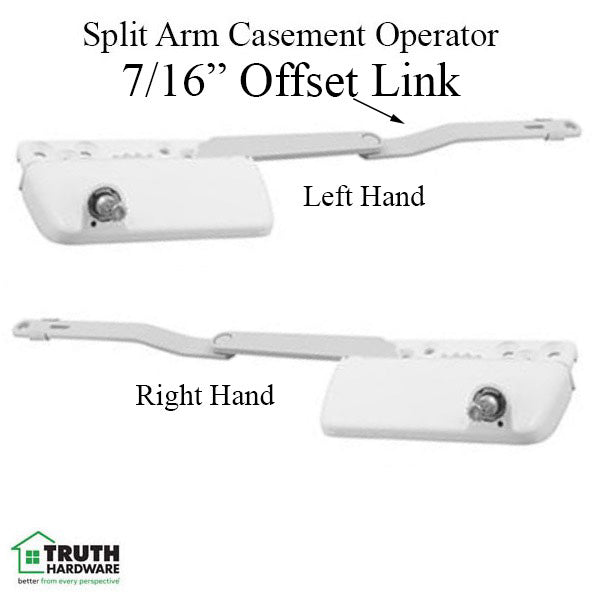

Handed: Yes Left or Right as shown

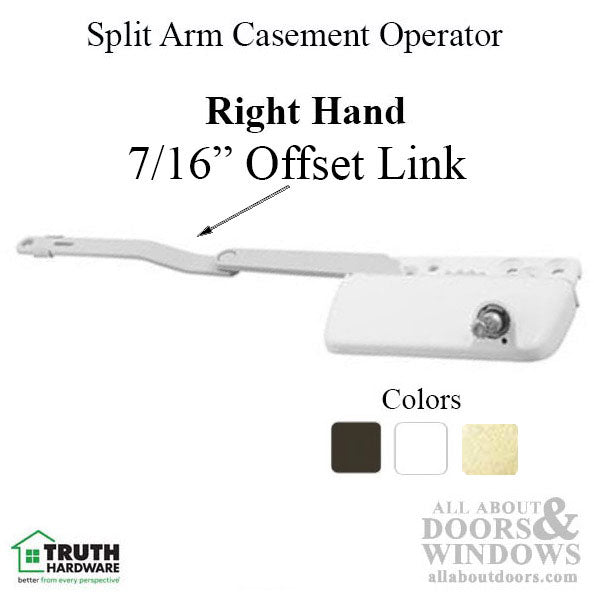

Color Options: White , Gold or Bronze

Link Mount: Under Main Arm

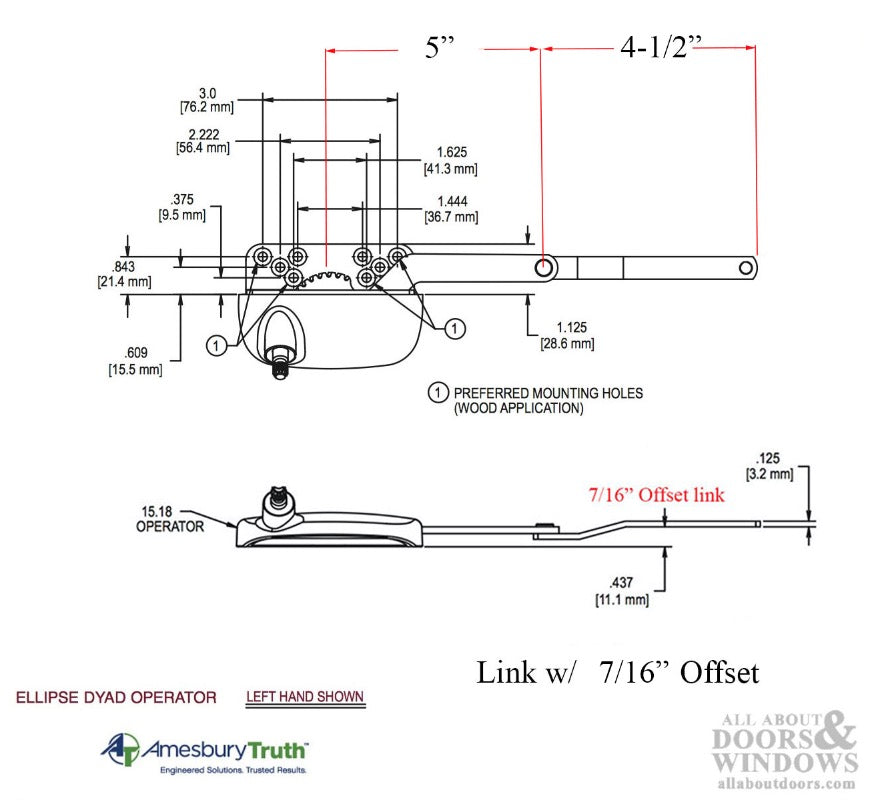

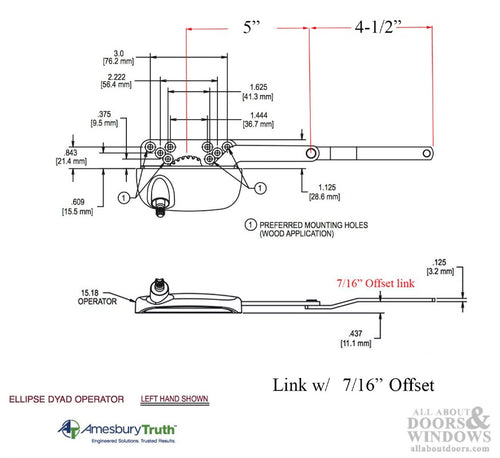

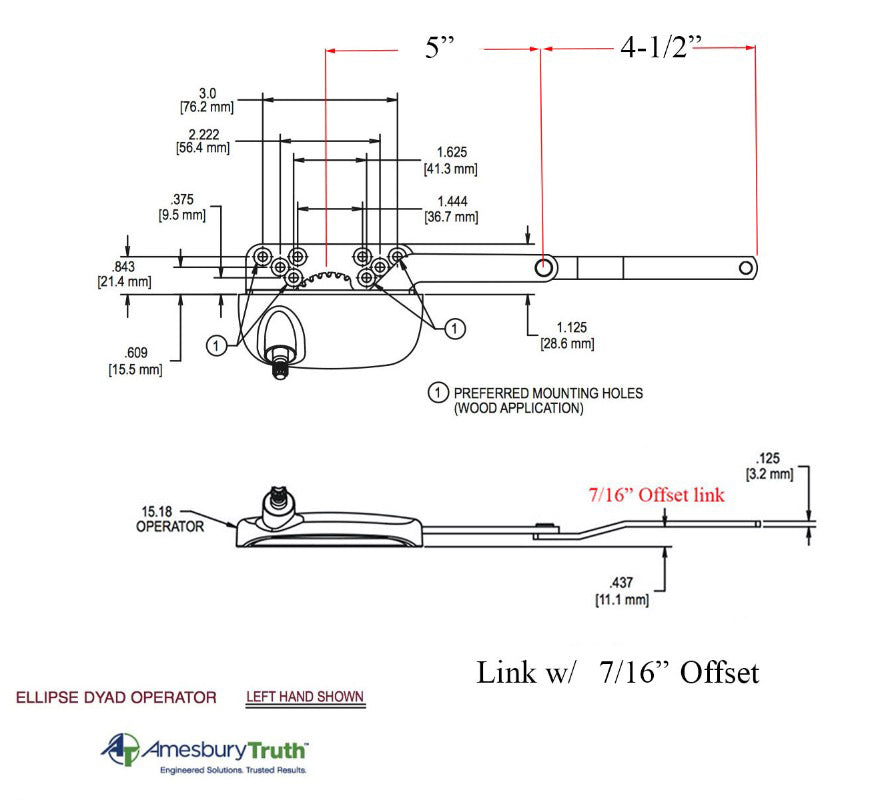

Link Shape: 7/16 inch Offset up


Note 1:

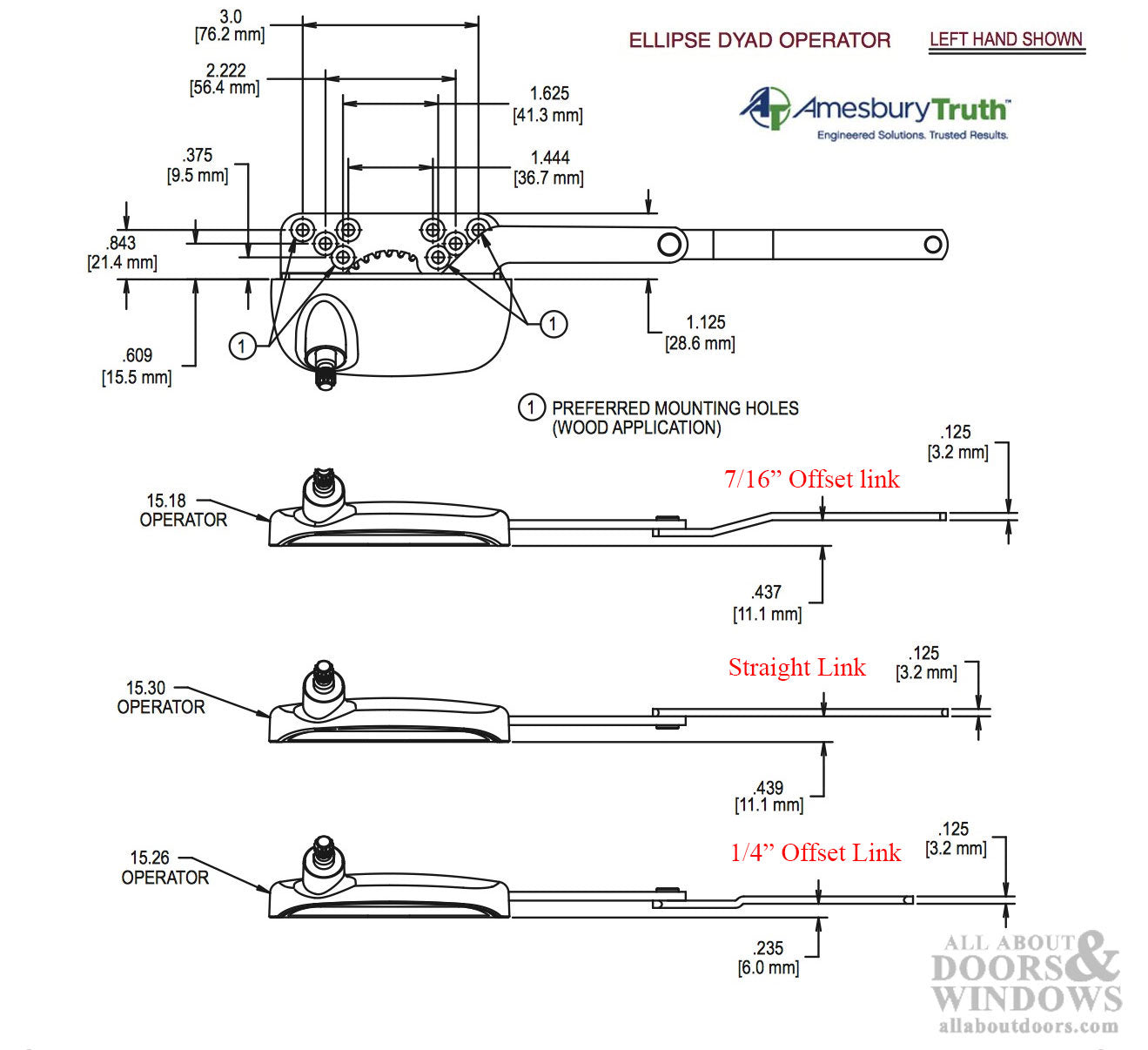

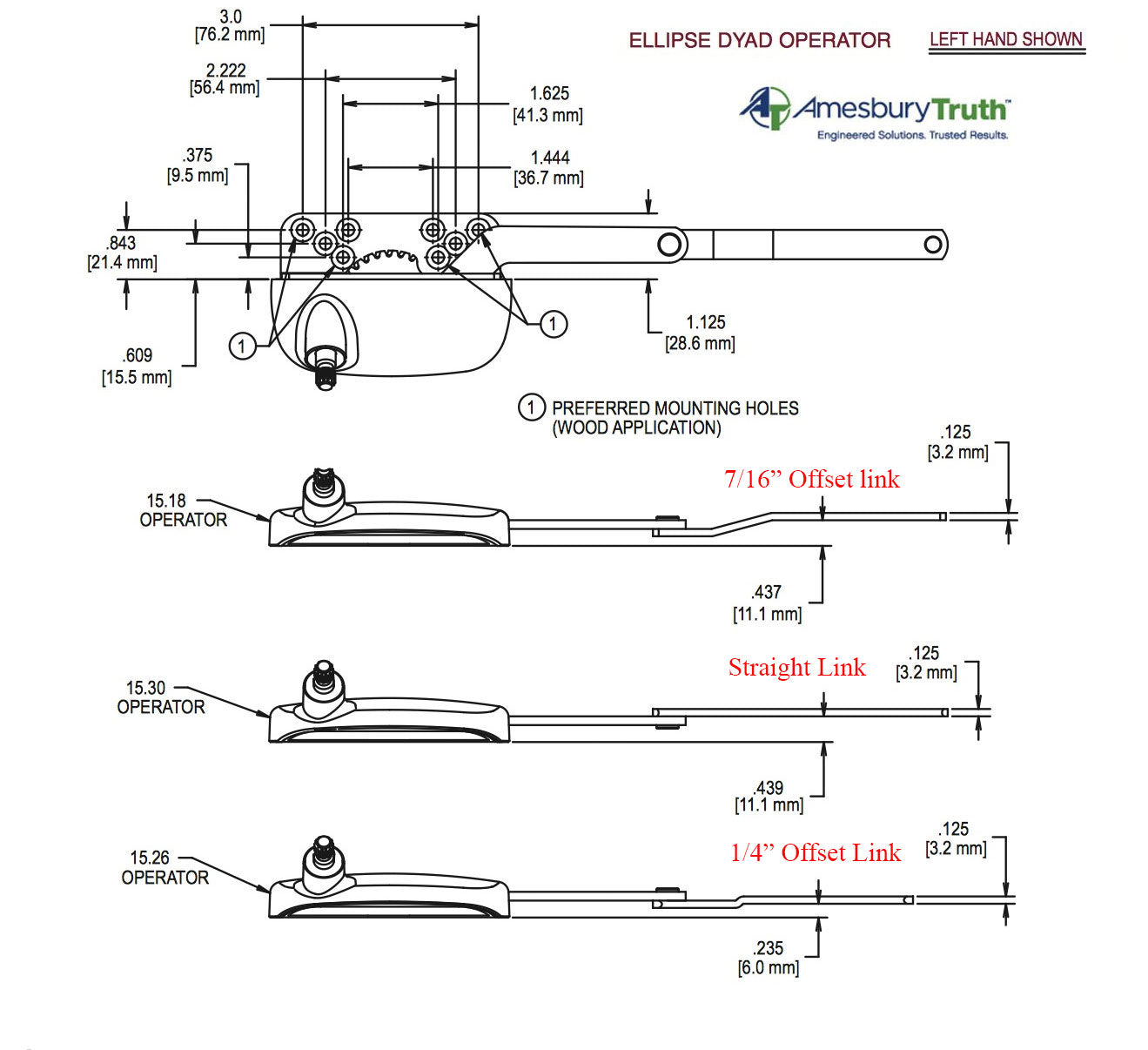

This operator comes with 3 different links on end of main arm.

1. Straight Link mounted on top of main arm.

2. 1/4 inch offset Link mounted below main arm

3. 7/16 inch offset Link mounted below main arm


Note 2:

The lengths and shape of links vary. Please compare all measurements

This product is similar to or the same as the following part numbers in these brands:<br> Truth: 15.18.03.262 Bronze, 15.18.32.262 White, 15.18.29.262 Gold
