Truth Door Handle For Sliding Glass Doors Curved Top Keyed Handlset Choose Color

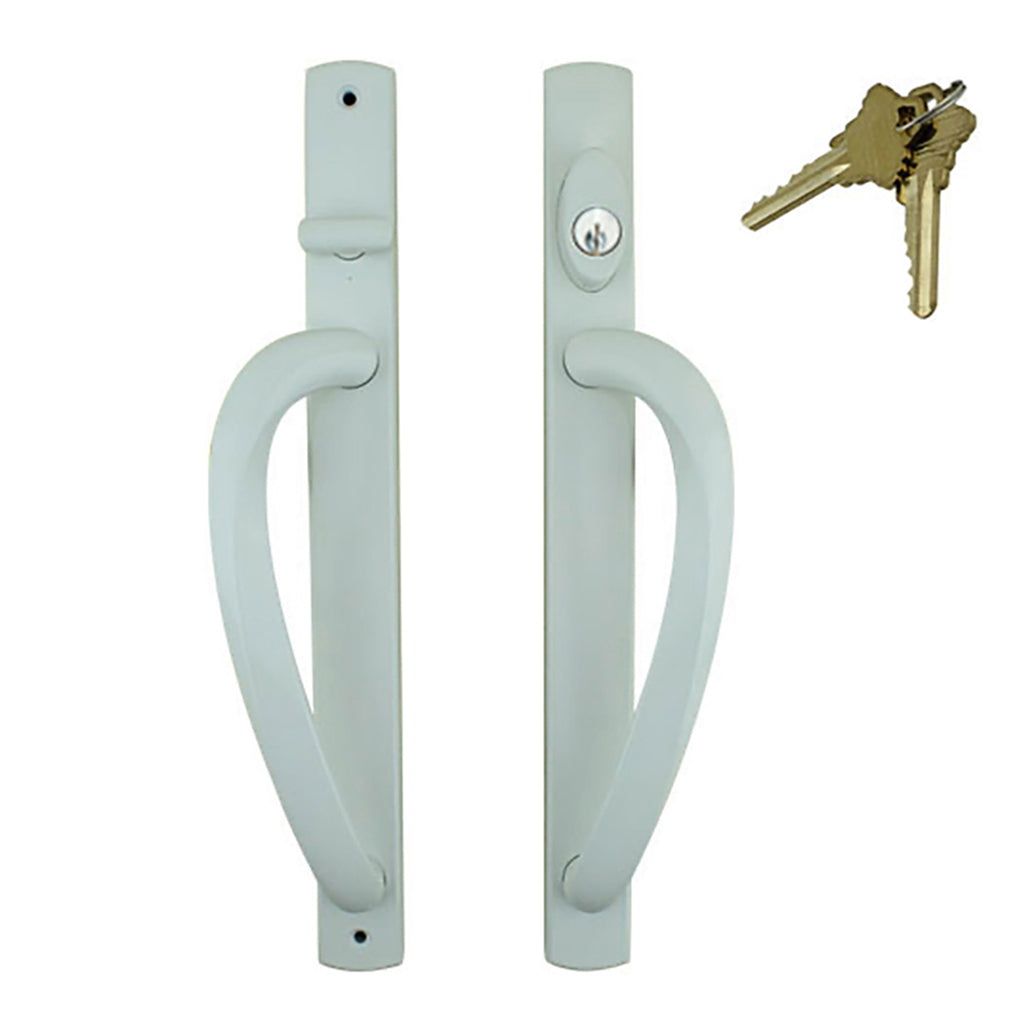

Amesbury Truth 40.94.32.101.1 Signature Series Sliding Door Hardware with keyed cylinder

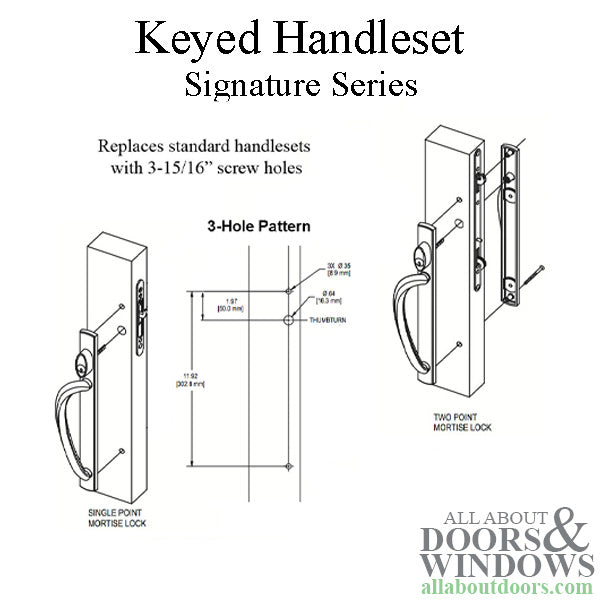

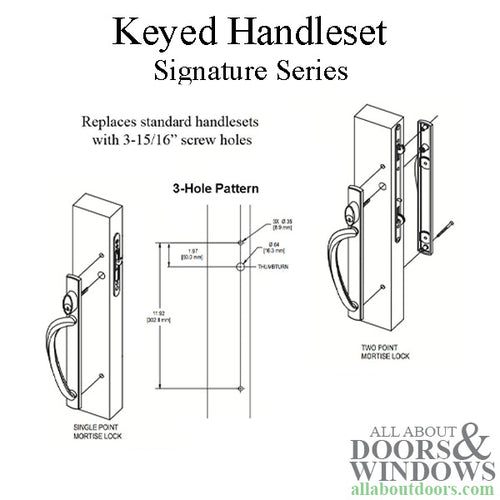

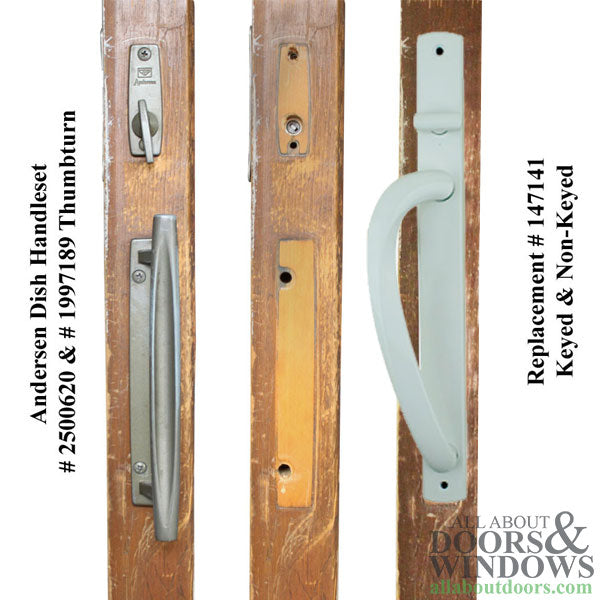

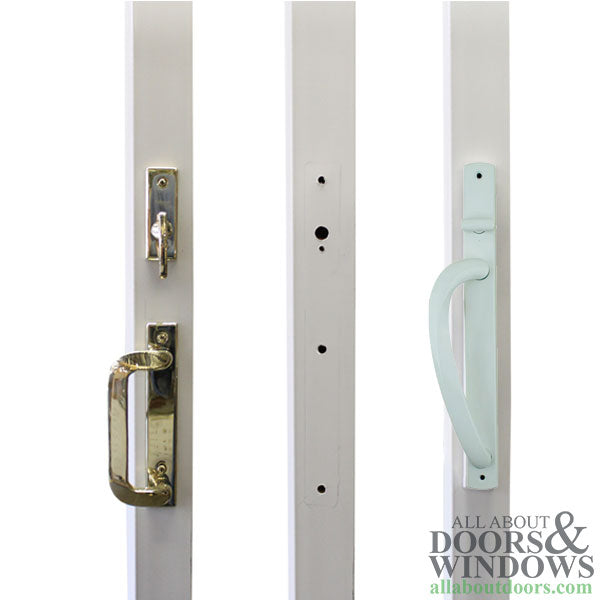

Replaces many styles and brands including Anderson and doors with standard 3-15/16" screw
hole handle sets. Will need to drill additional holes in door to accommodate bottom screw. Used
on single and dual locking 2-point lock mechanisms.

This style of handle has 3 functions:
1. Non-Keyed
2. Keyed, Schlage SC1
3. Dummy

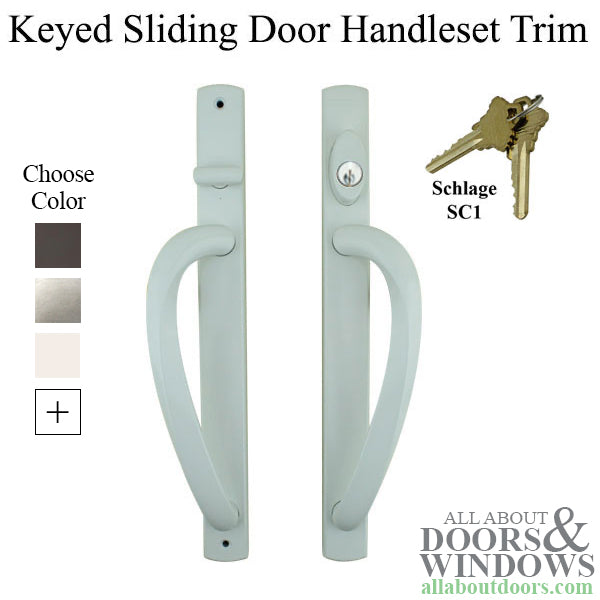

Function: Keyed, Schlage 5 pin, SC1

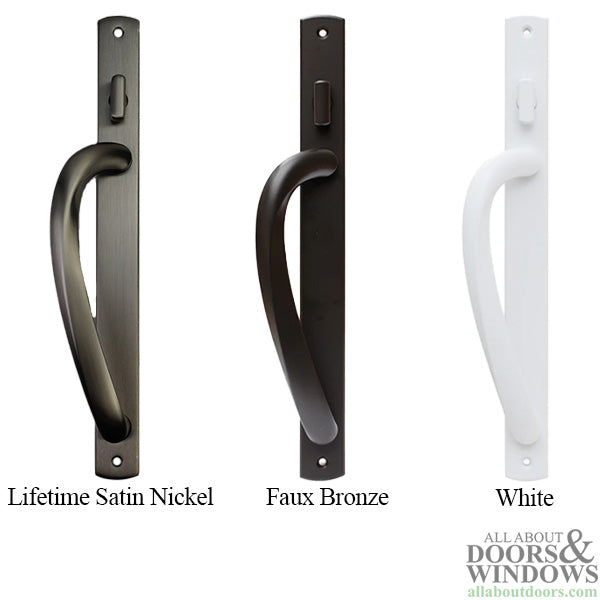

Color / Finish: White, Bronze, Nickel

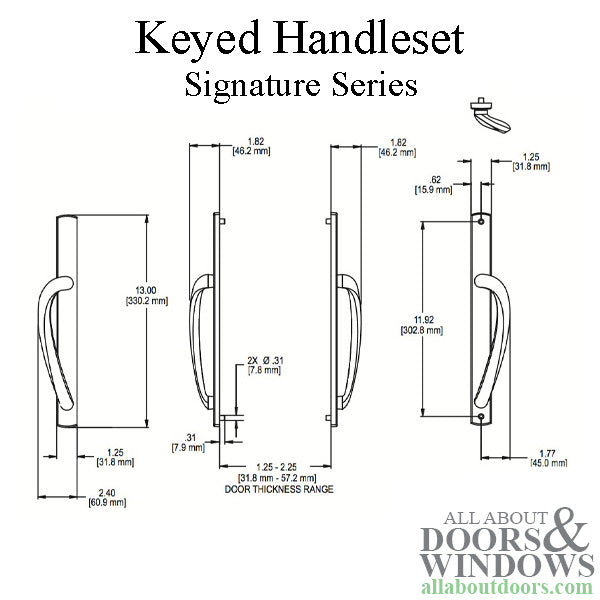

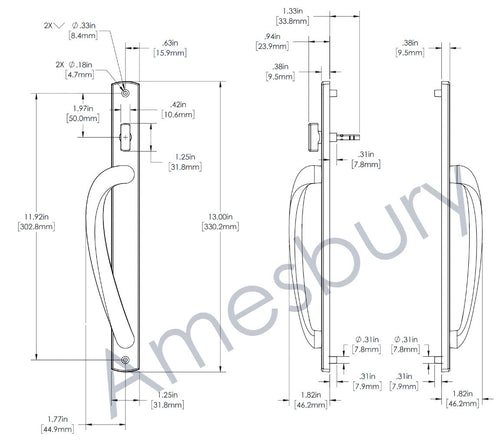

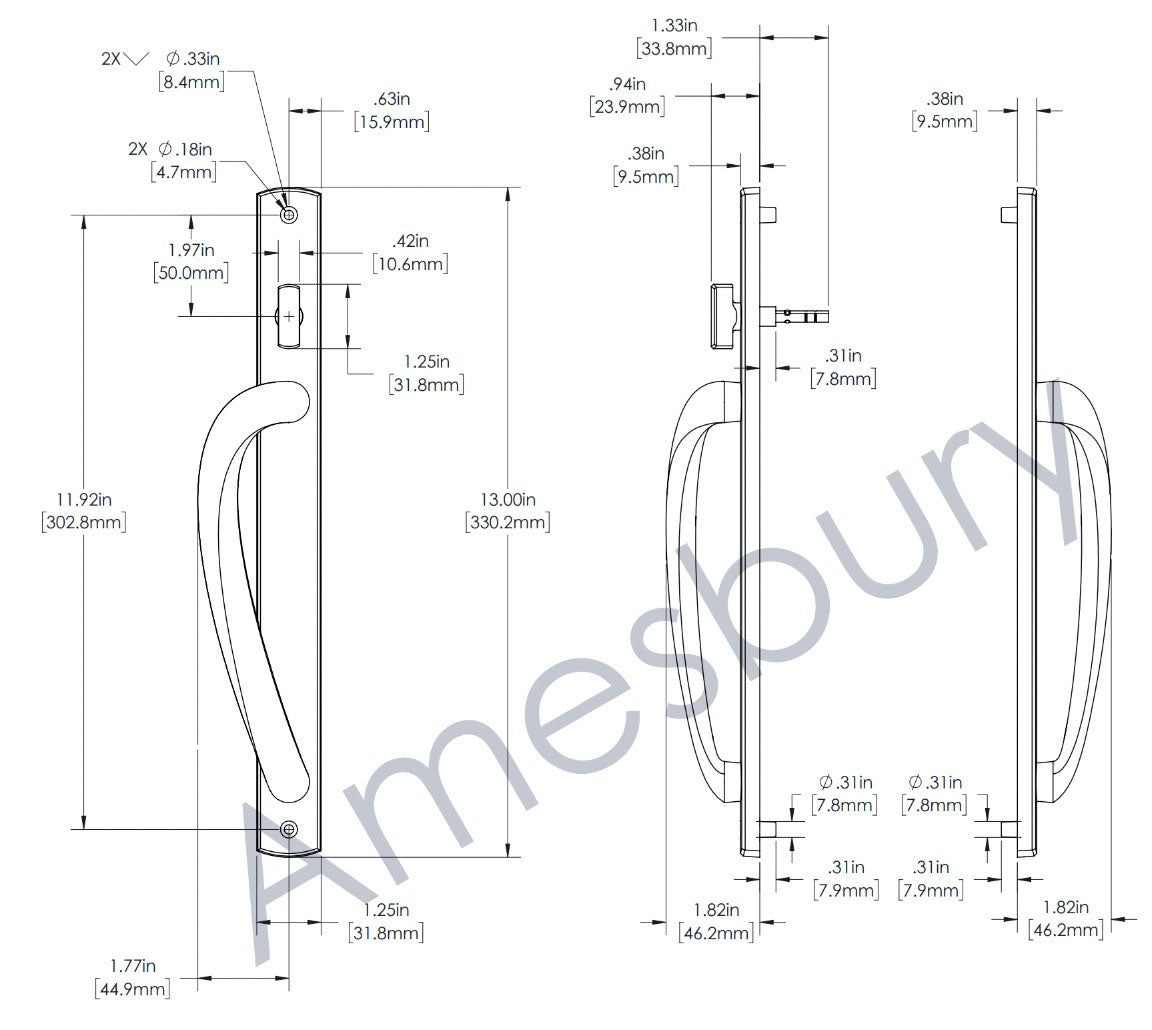

Installation Screw Holes: 11-15/16 inch (302.8mm)
Installation Screws: 8-32
Escutcheon Plate Width: 1-1/4 inch (31.8mm)
Escutcheon Plate Length: 13 inch (330.2mm)
Handle Screw holes: 7-3/8 inch
Handle Mounting Screws: 10-32 x 3/8
Material: Aluminum - Painted Finishes
Material: Brass - Premium PVD Finishes

Door thickness range: Comes with assorted screws
1-3/16 - 1-9/16 thick uses 1-3/4 inch screw
1-9/16 - 1-15/16 thick uses 2-1/8 inch screw
1-15/16 - 2-5/16 thick uses 2-1/2 inch screw
