Amesbury Truth Modern / Contemporary Signature series Sliding patio door handle
Semi-Active Non-Keyed Exterior with Interior Thumb Latch
Typically installed with a single, 2-Point or 3-point locking mortise lock with hooks.
Applications: Residential and Commercial sliding doors. Aluminum, Wood, Vinyl and Composite
Key Position: Non-Keyed (thumb latch only)
Function: Semi-Active, non-keyed with Interior thumb latch

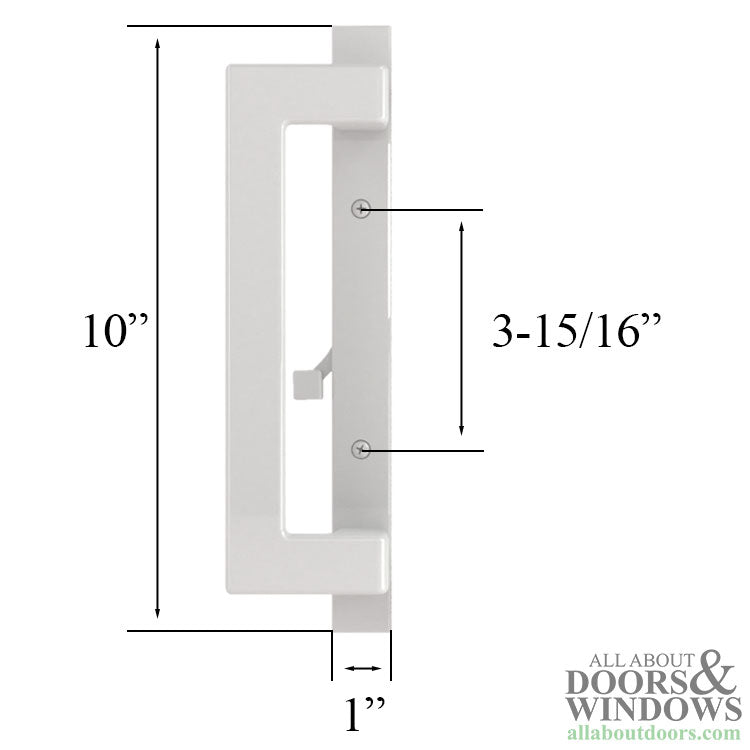

Screw Hole Centers: 3-15/16 inch
Door Thickness: stile thickness ranging from 1.25 to 2.25 inches (32 - 57mm)
Material: Brass substrate for Plated and PVD finishes Zinc substrate for Painted finishes

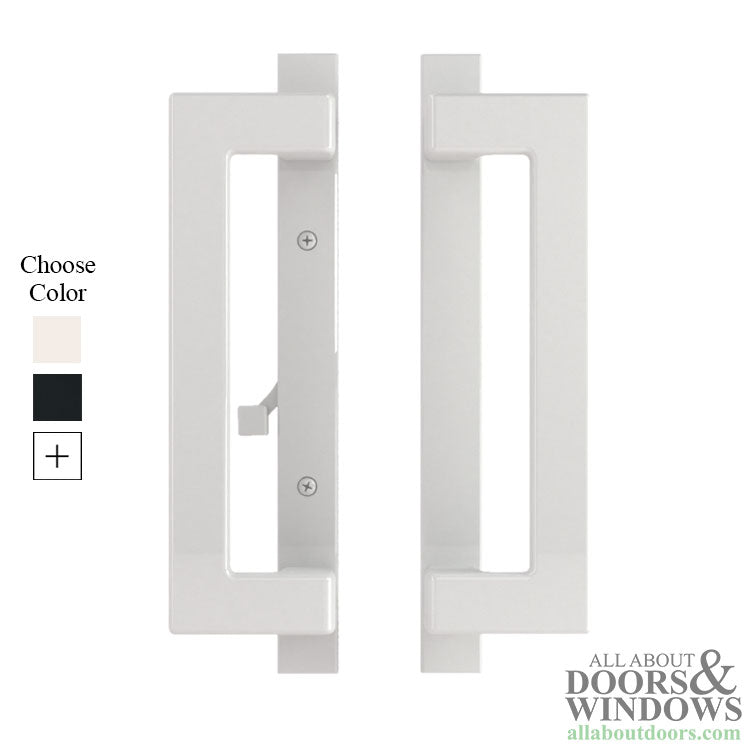

Color / Finish Options:

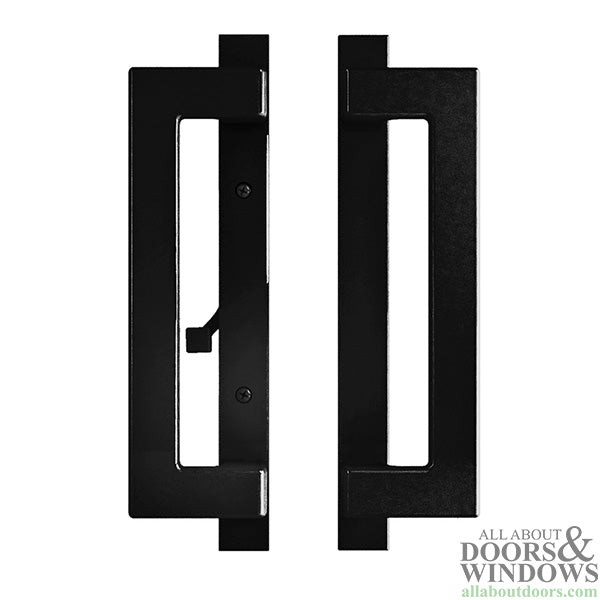

Black

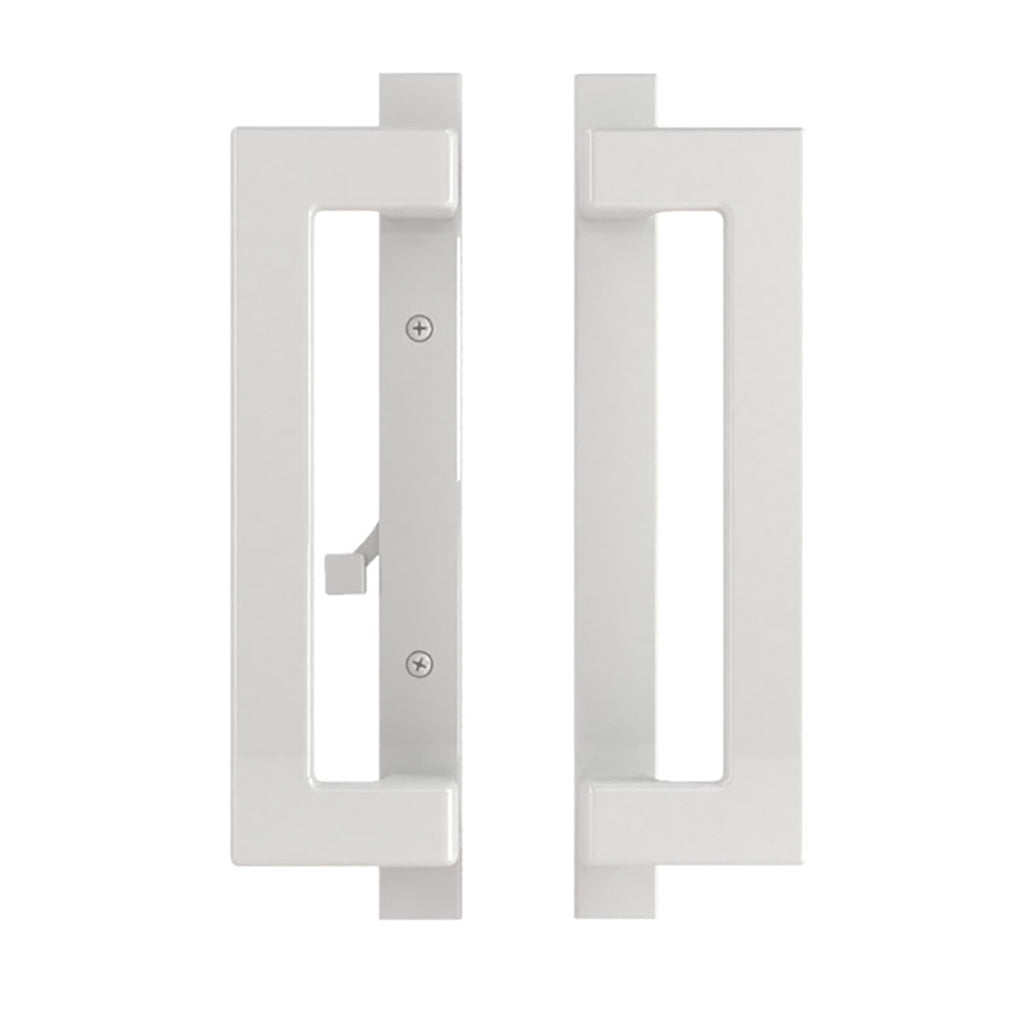

White
Other Functions:
147185: Active, Keyed with an interior thumb latch (key is centered)
147186: Active, Keyed with an interior thumb latch (key is OFF center)
<p class="p1" style="margin: 0px; font-variant-numeric: normal; font-variant-east-asian: normal; font-stretch: normal; font-size: 12px; line-height: normal; font-family: "Times New Roman";">Part Number<span class="Apple-converted-space"> </span>Function <span class="Apple-converted-space"> </span></p><p class="p1" style="margin: 0px; font-variant-numeric: normal; font-variant-east-asian: normal; font-stretch: normal; font-size: 12px; line-height: normal; font-family: "Times New Roman";">40.69.xx.100<span class="Apple-tab-span" style="white-space: pre;"> </span>Semi - Active<span class="Apple-tab-span" style="white-space: pre;"> </span> <span class="Apple-converted-space"> </span></p><p class="p1" style="margin: 0px; font-variant-numeric: normal; font-variant-east-asian: normal; font-stretch: normal; font-size: 12px; line-height: normal; font-family: "Times New Roman";">40.69.xx.101<span class="Apple-tab-span" style="white-space: pre;"> </span>Active - Centered <span class="Apple-converted-space"> </span></p><p class="p1" style="margin: 0px; font-variant-numeric: normal; font-variant-east-asian: normal; font-stretch: normal; font-size: 12px; line-height: normal; font-family: "Times New Roman";">40.69.xx.102<span class="Apple-tab-span" style="white-space: pre;"> </span>Active Offset<span class="Apple-tab-span" style="white-space: pre;"> </span> <span class="Apple-converted-space"> </span></p><p class="p1" style="margin: 0px; font-variant-numeric: normal; font-variant-east-asian: normal; font-stretch: normal; font-size: 12px; line-height: normal; font-family: "Times New Roman";">40.69.xx.103<span class="Apple-tab-span" style="white-space: pre;"> </span>Inactive</p>
