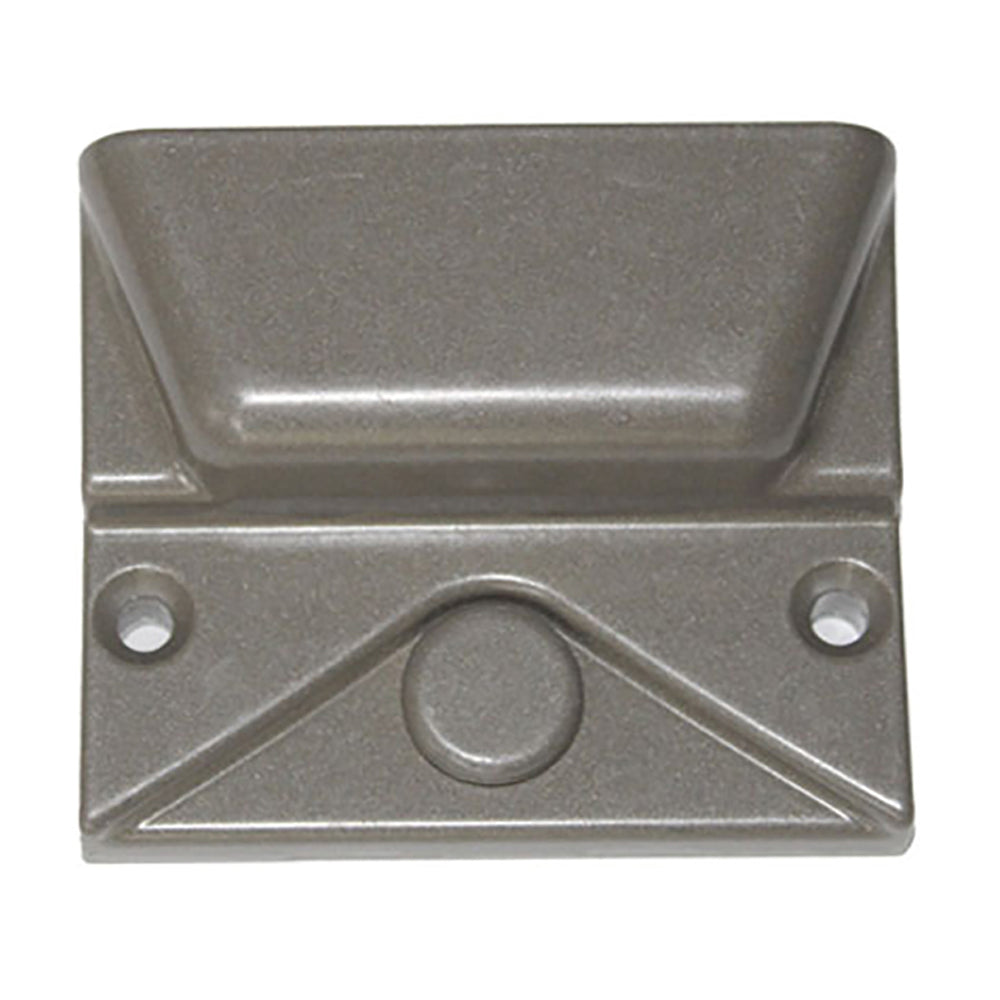

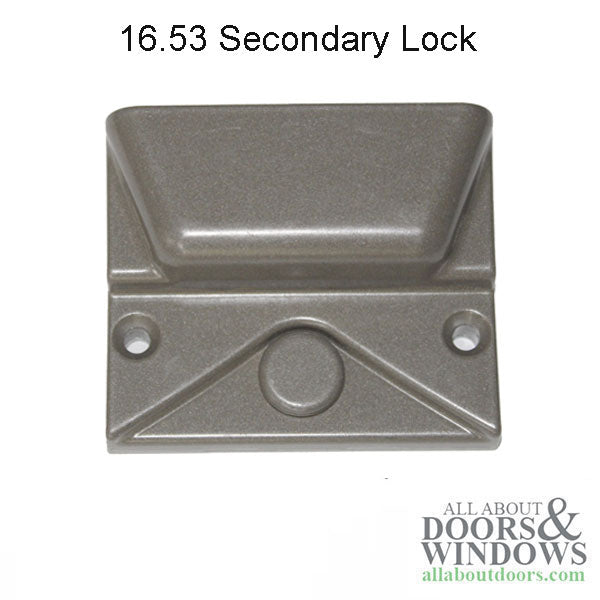

Secondary Top Sash Lock with Black Plastic Cam

Old inventory. May have minor imperfection in finish. Sold as-is.

Used in Tie Bar applications.

Used in conjunction with one or more sash locks.

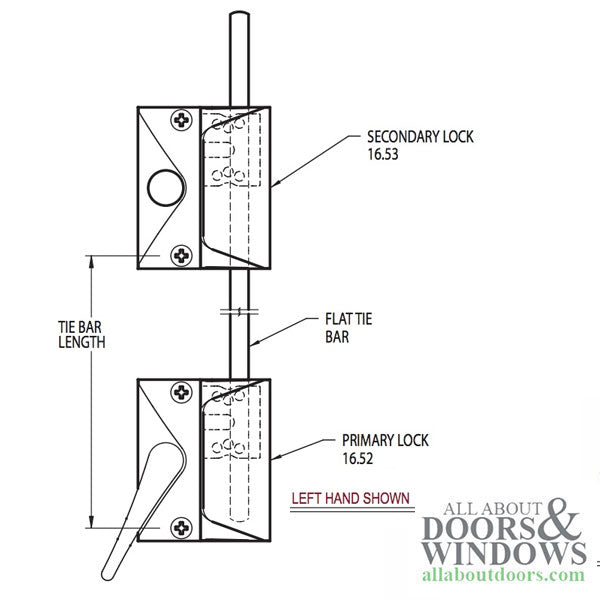

Does not include the operating lever or pin. This is the dummy top lock operated in tandem with a primary sash lock that has the operating lever.

• Application:  Multipoint lock casement window with tie bar

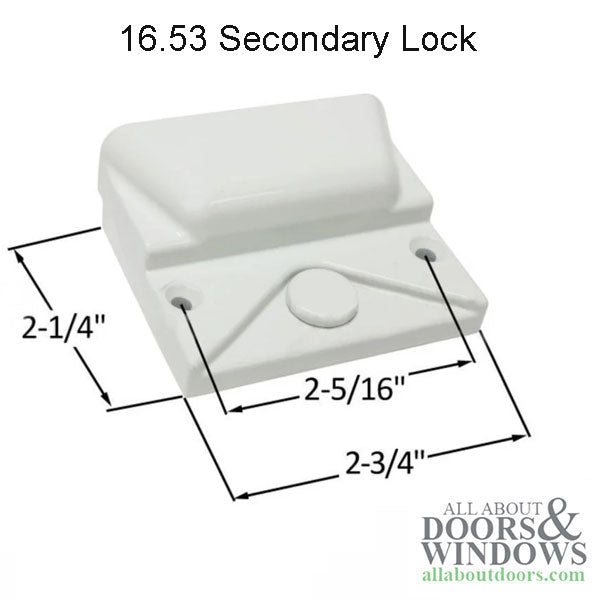

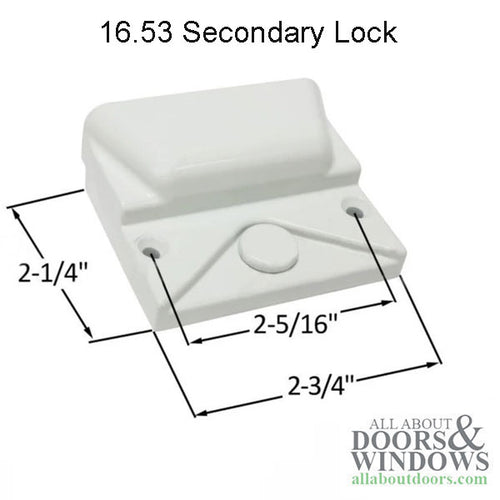

• Sash Lock Width:  2-1/4 inch
• Sash Lock Height:  2-3/4 inch
• Screw Hole Spacing:  2-5/16 inch
• Lock Material:  High-pressure die-cast zinc handle and case, with galvanized steel back plate.
• Cam Material:  High-strength black plastic.
• Cam Width:  1/2 inch (12.7mm)
• Color:  As Shown
• Suggested Screws:  #8 x 1.25 flat head (Sold separately)

Used by Hayfield Windows, Semco, VOS, Vetter, Weather Shield, Crestline, and others.

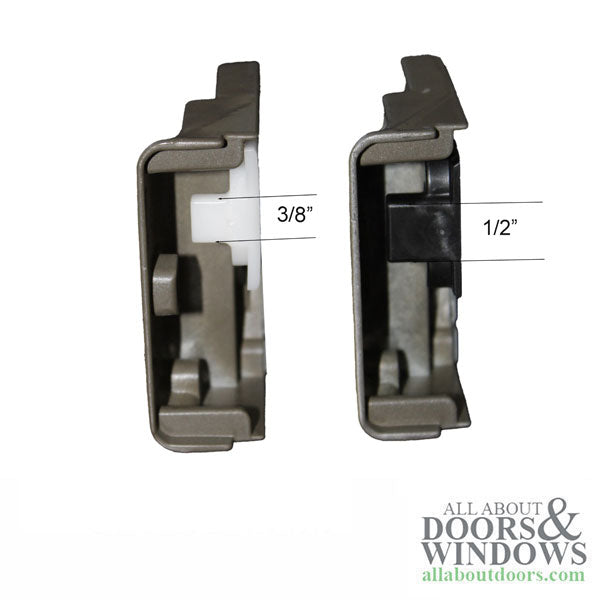

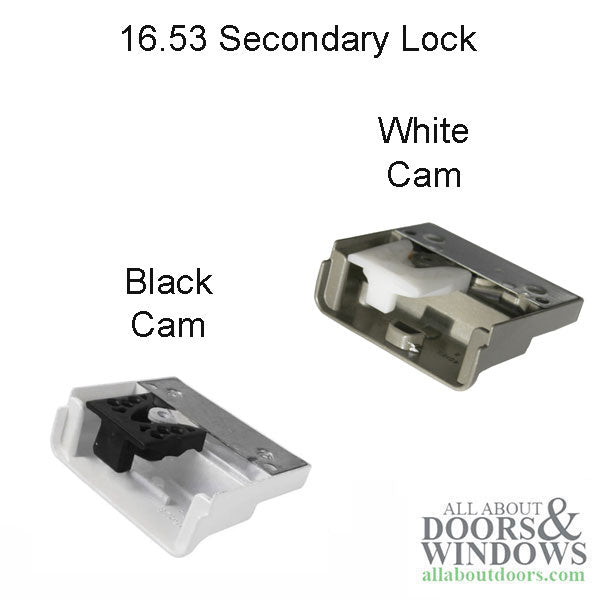

Note:  The older versions were used with flat bar or wire tie bars and the plastic cams could be either white or black. The white and black cams are different sizes. Both cams will work as a secondary lock, however if you are replacing a lock with a white cam, this newer black cam version will also require a new keeper. See Related Items below or browse our site for a matching keeper for this lock. Or, if you are looking for a keeper for the white cam version, we may have those available as well.

Priced and sold each. Screws sold separately.
