PDF Guide to Truth Sentry Adjustable Door Hinges

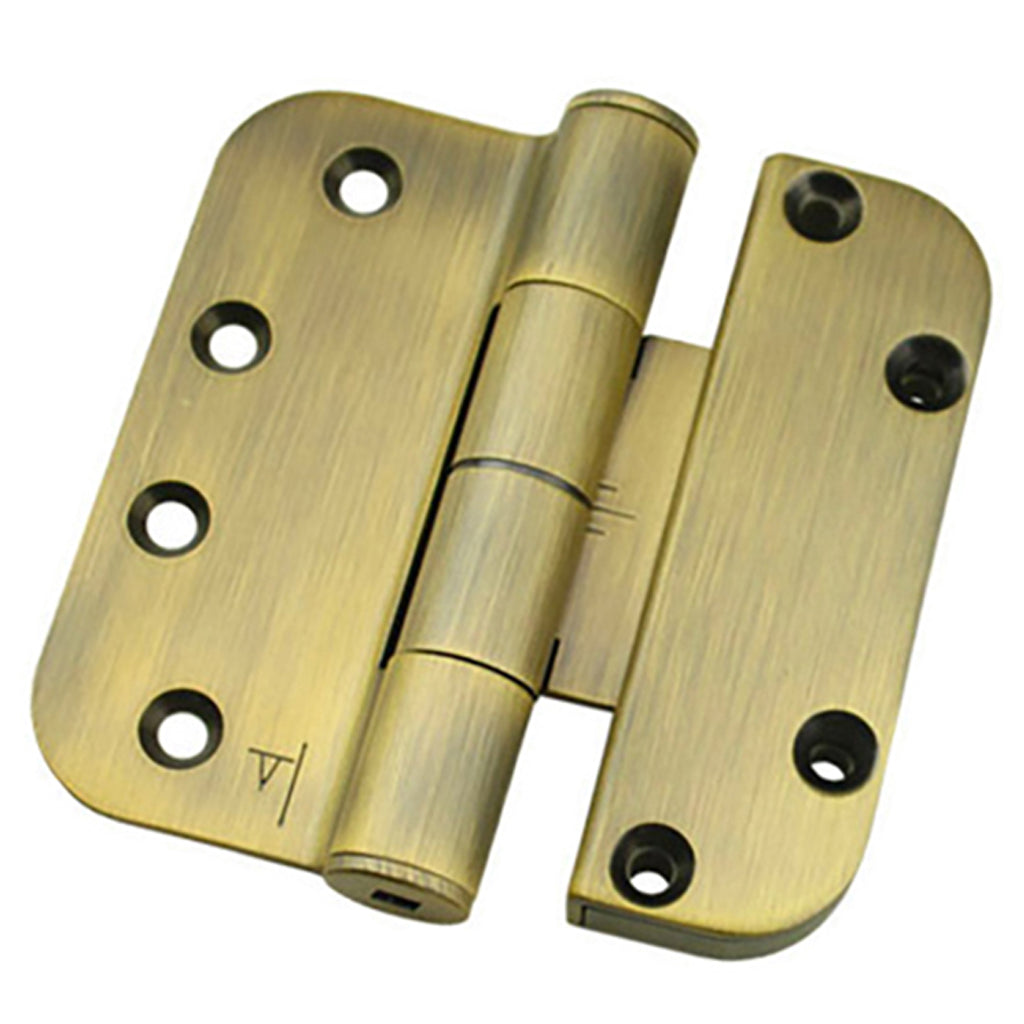

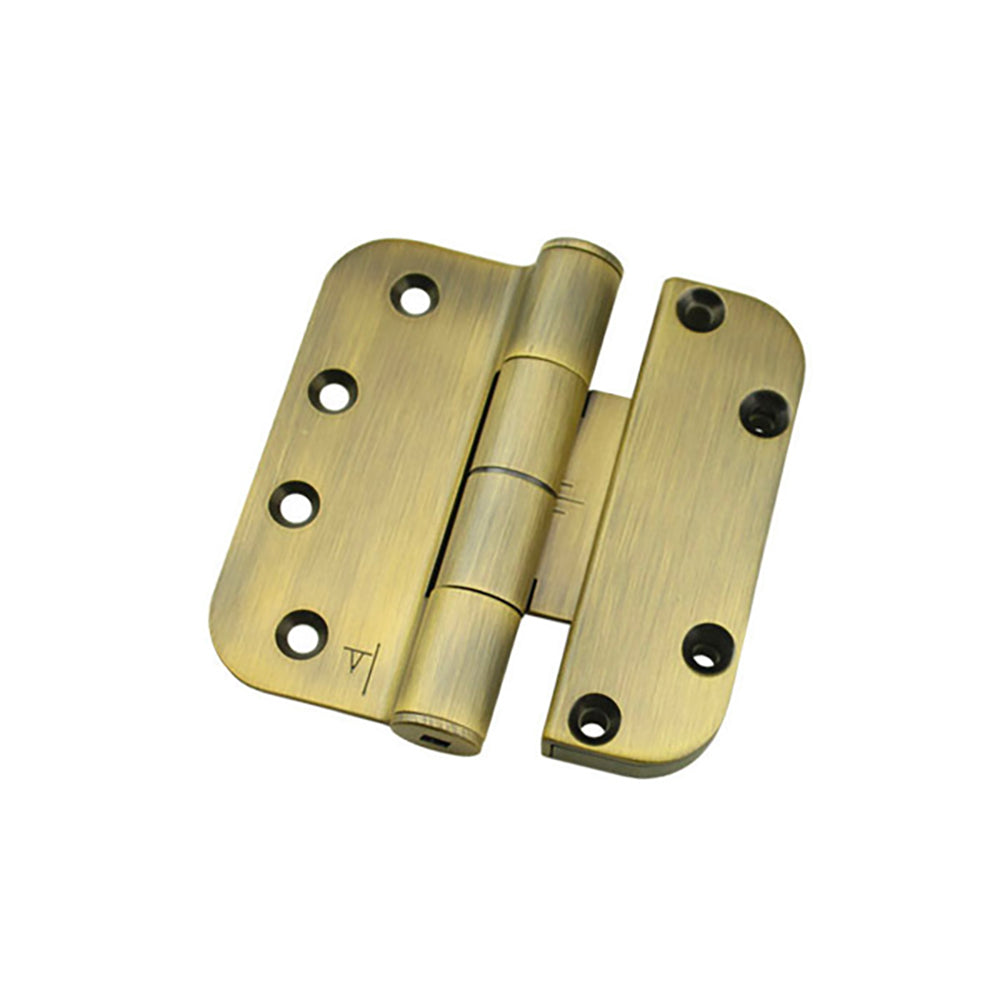

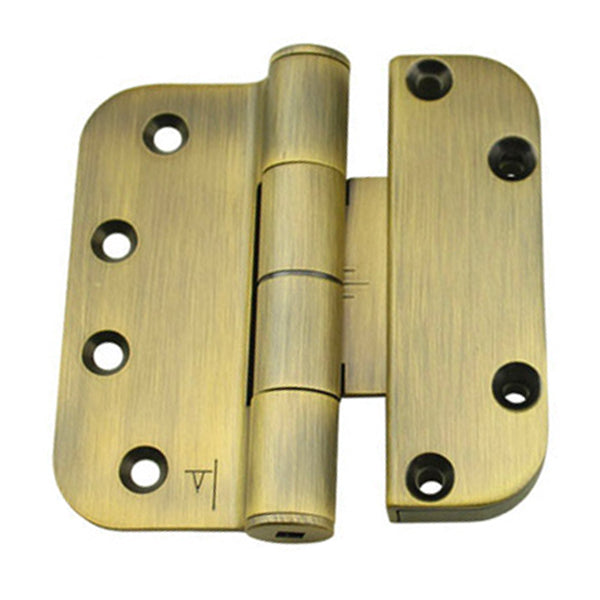

Sentry Truth Horizontal adjustable door hinges are made to provide maximum strength and security.
Sentry Hinges are made to adjust to create the perfect fit for your door.
They are made out of extruded brass and extruded aluminum substrates, which provides superior strength and excellent corrosion resistance.
Non-removable pins prevent the tampering of swinging doors.

Guide Hinge - Horizontal adjustment of +/-.08 in (+/- 2mm)

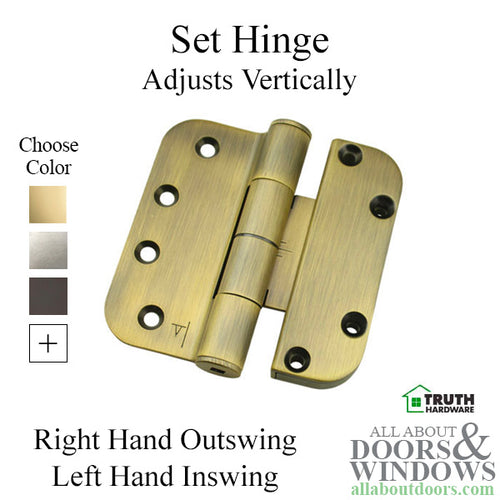

Set Hinge - Vertical adjustments of +/- .12 in. (+/- 3mm)

Specifications:
Handing: Right Hand Outswing / Left Hand Inswing (RHO/LHI)
For a Left Hand Outswing / Right Hand Inswing please see part 9748022

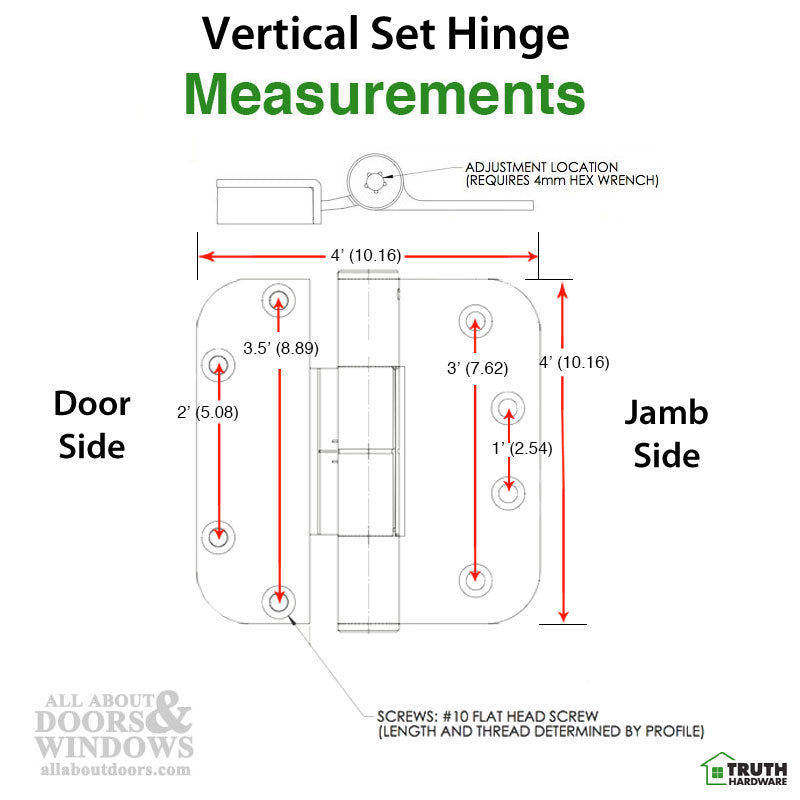

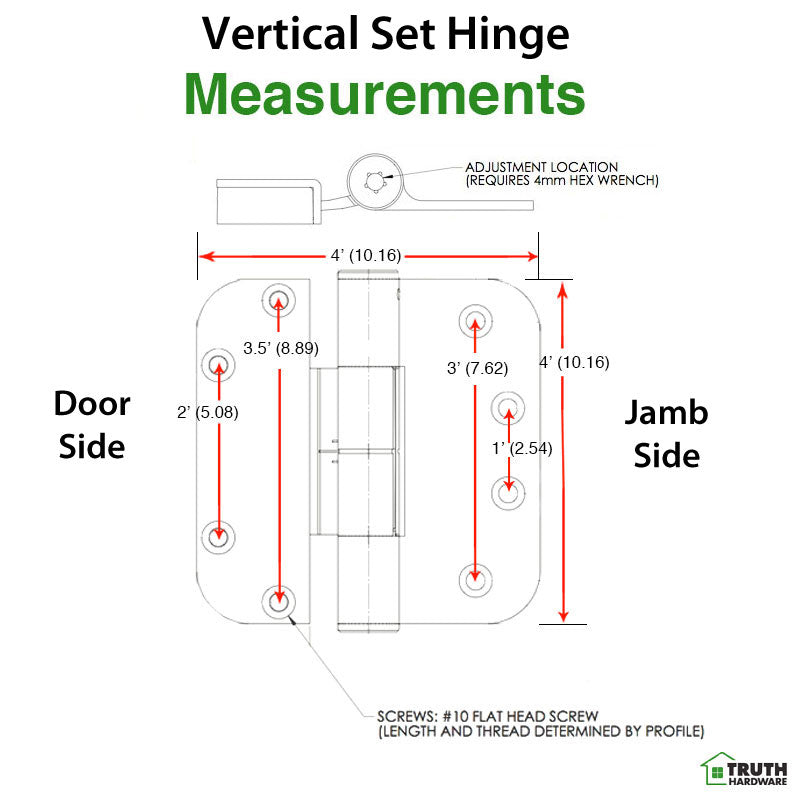

Height: 4 inches
Width: 4 inches
Corners: 5/8 inch corner radius

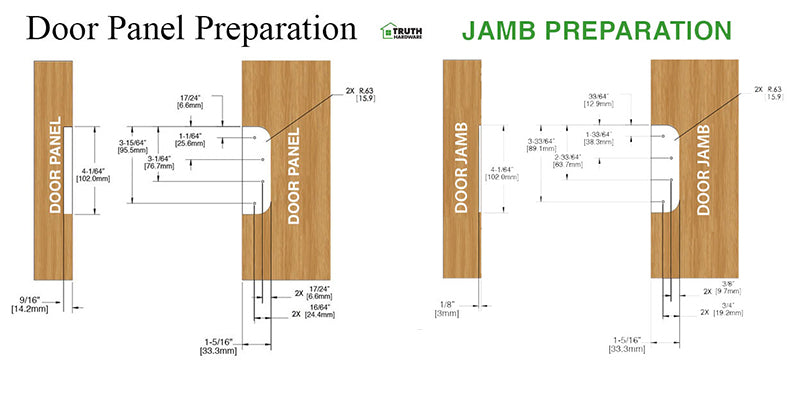

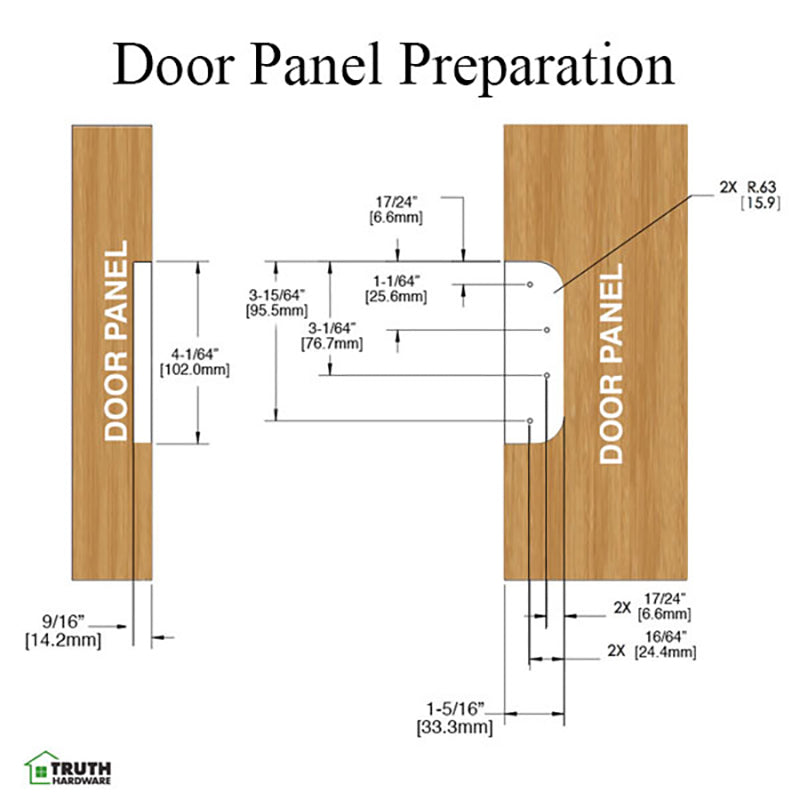

Thickness: 9/16 inches [14.2mm] on the thicker side and 1/8 inches [3.0mm] on the thinner side of Hinge

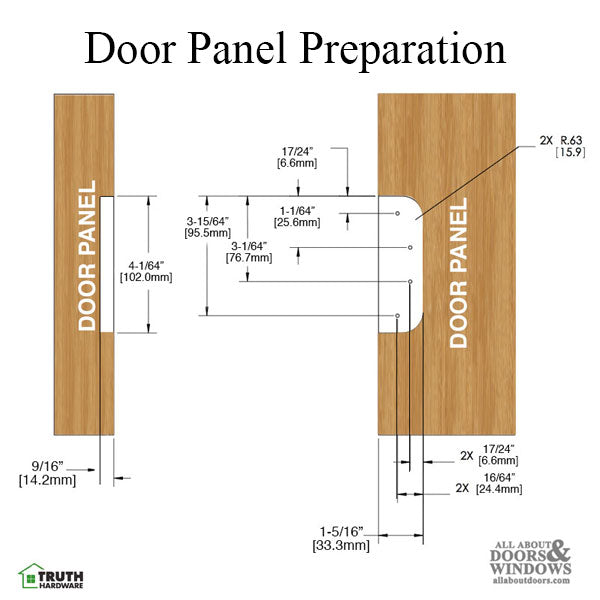

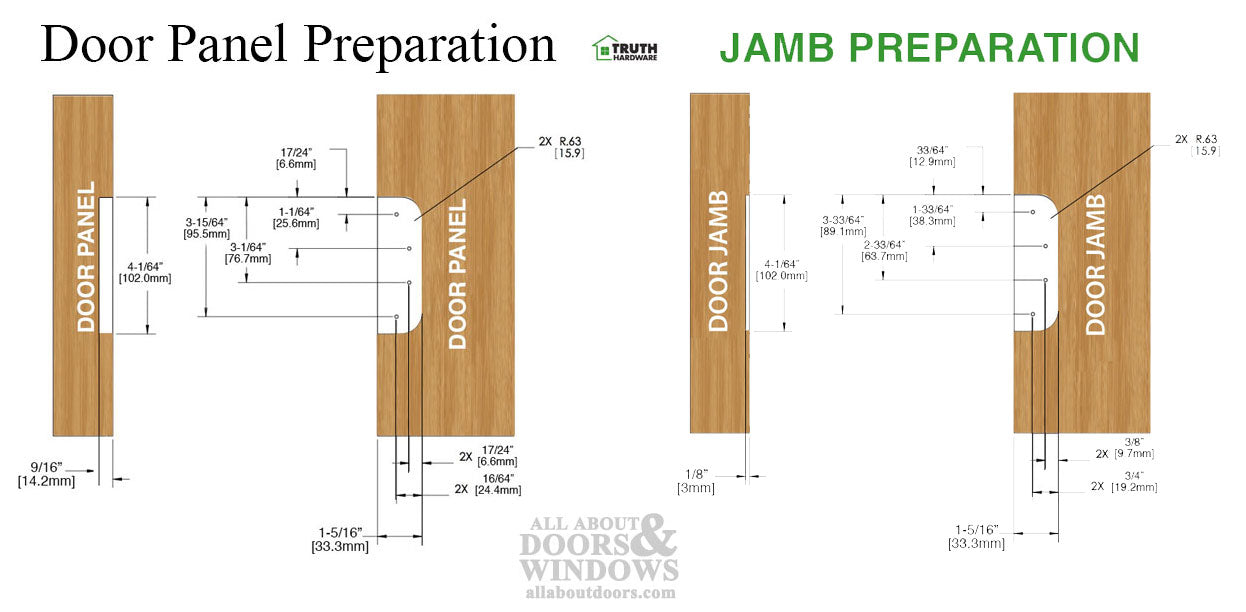

Hole Pattern: Standard 4 hole Template
Hinge Pin: Non-remove pin
Screws: No installation screws included
Hinge Material :Solid Brass or Painted Aluminum

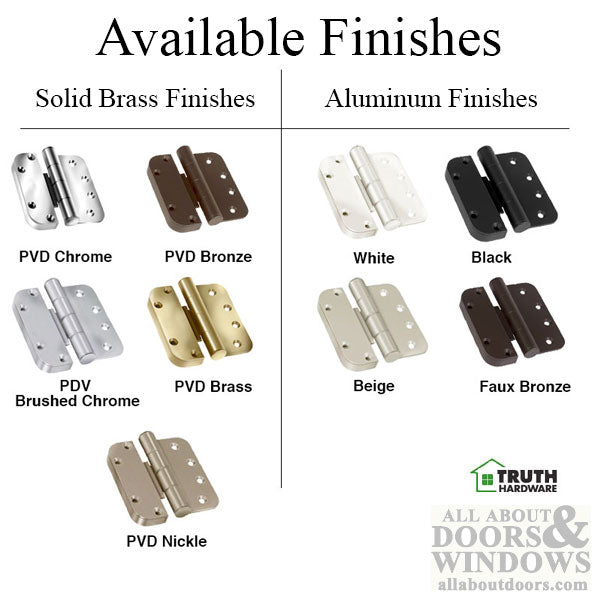

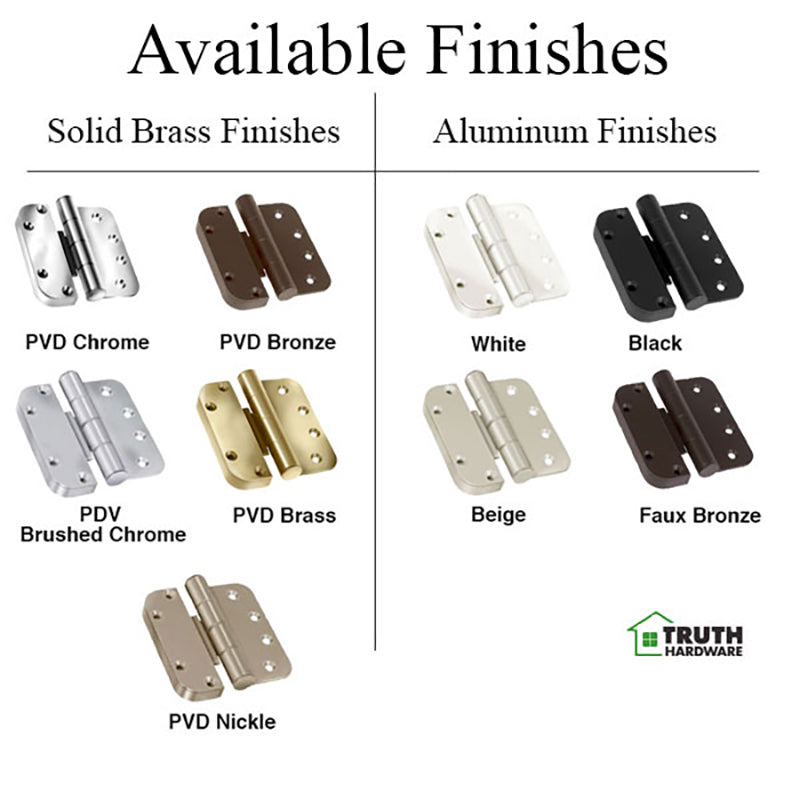

Available Finishes: (Solid Brass)
Antique Brass
PVD Brass
PVD Brushed Chrome
PVD Chrome
PVD Oil Rubbed Bronze
PVD Nickel (Satin Nickel)

Available Finishes: (Painted Aluminum)
White
Beige
Faux Bronze
Black
