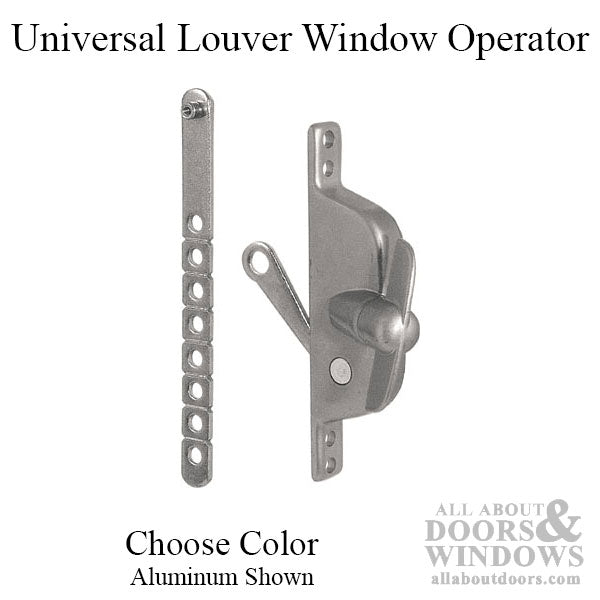

Universal Jalousie/Louver Window Operator with T-Handle, Adjustable Link, Non-Handed - Choose Color
Part Number: Price: $21.95Universal Jalousie/Louver window operator with (adjustable link).
The adjustable link will replace most operators being used today.
This jalousie/louver operator has an adjustable break off link arm.
The link has a break off every 1/2 inch.

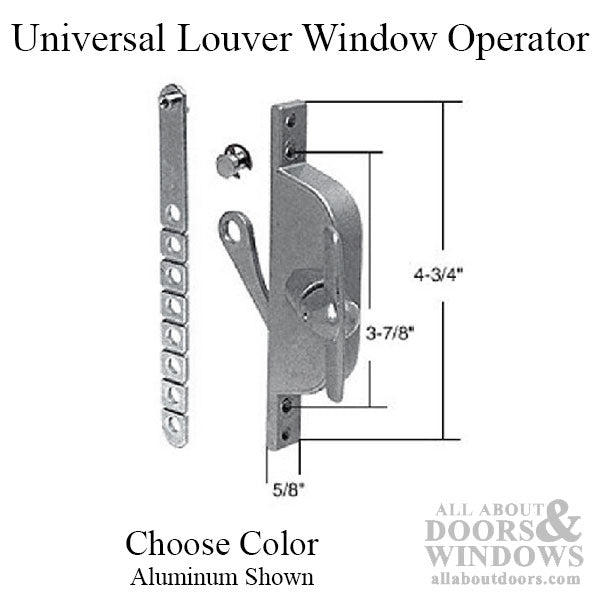

Please see our 3rd image for a visual reference.
Handed: Non-Handed, this operator will work on left or right handed windows.

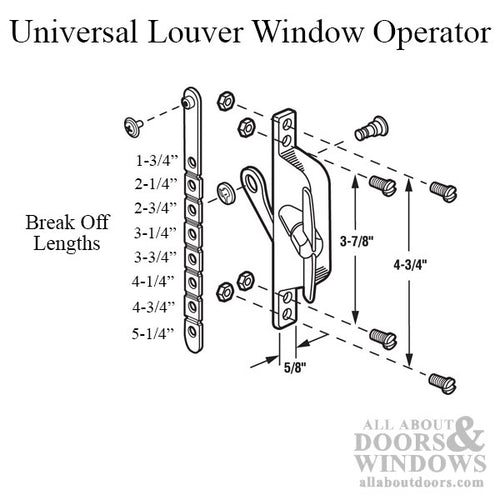

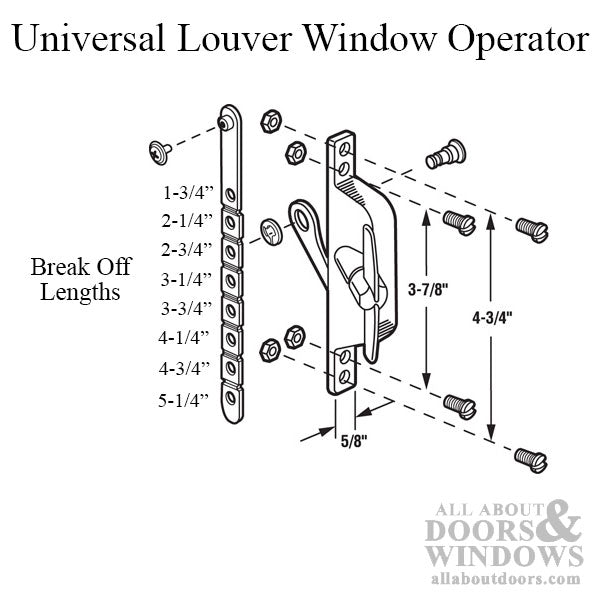

Hole Spacing: Outside holes spaced at 4-3/4"
Inside holes spaced at 3-7/8"
Crank Handle SPLINE Diameter: 5/16 inch
Material: Mixed

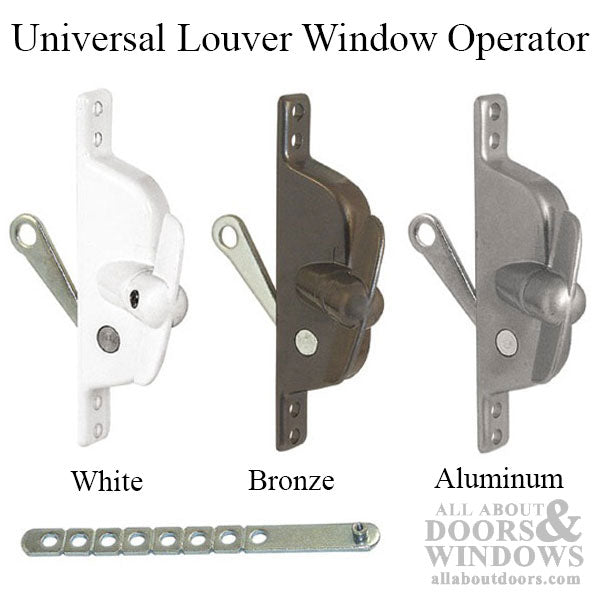

Color Options:
Aluminum
White
Bronze
Related Parts:
56616 - Link Arm Only, Universal Break Off
56617 - Universal Link Arm Pair - 2 sizes (2-7/16" and 3-5/8")
56603 - Left Hand Operator - 4" link
56604 - Right Hand Operator - 4" link
The adjustable link will replace most operators being used today.
This jalousie/louver operator has an adjustable break off link arm.
The link has a break off every 1/2 inch.
Please see our 3rd image for a visual reference.
Handed: Non-Handed, this operator will work on left or right handed windows.
Hole Spacing: Outside holes spaced at 4-3/4"
Inside holes spaced at 3-7/8"
Crank Handle SPLINE Diameter: 5/16 inch
Material: Mixed
Color Options:
Aluminum
White
Bronze
Related Parts:
56616 - Link Arm Only, Universal Break Off
56617 - Universal Link Arm Pair - 2 sizes (2-7/16" and 3-5/8")
56603 - Left Hand Operator - 4" link
56604 - Right Hand Operator - 4" link
