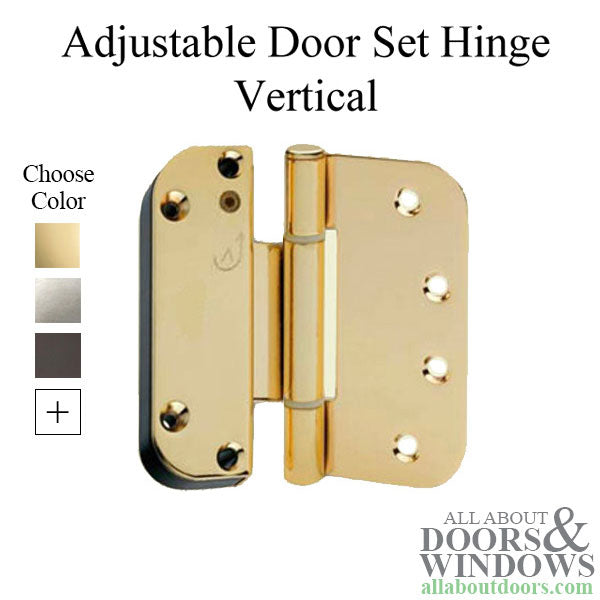

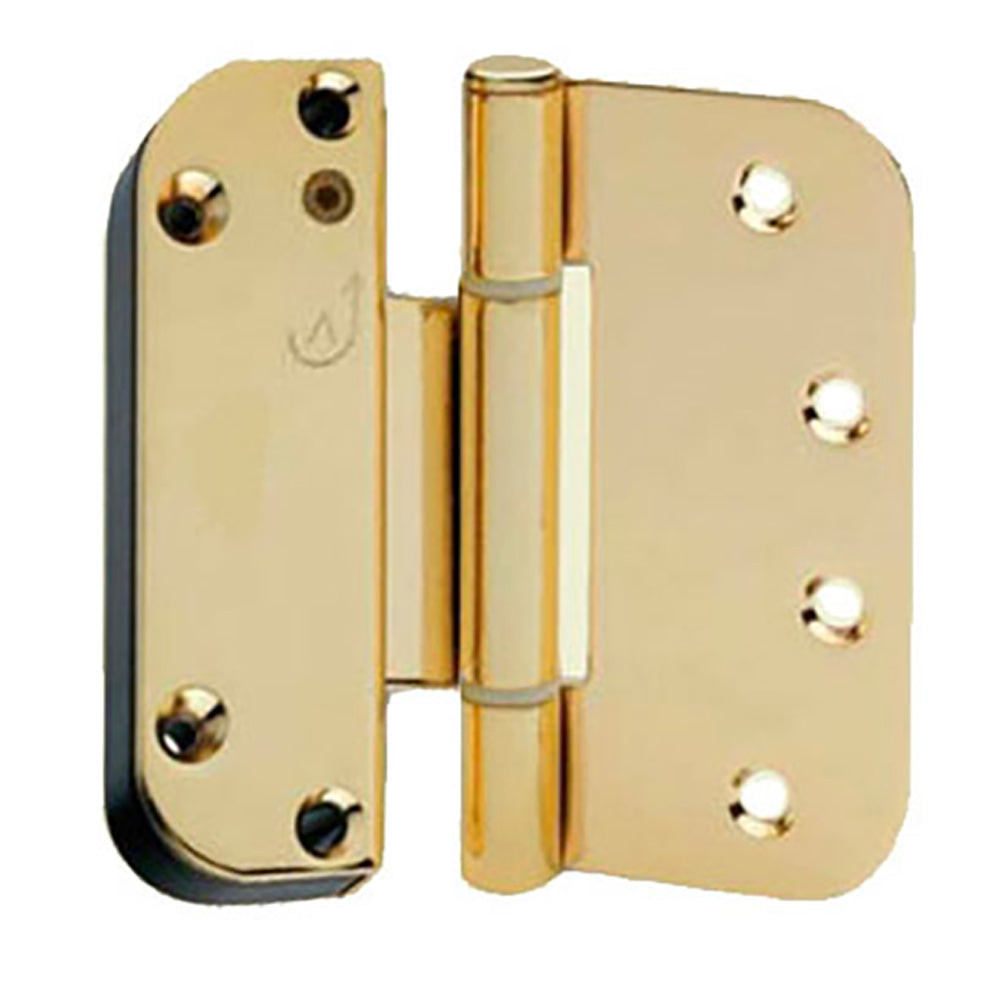

V400 Vertical Adjustable Set Hinge 2D reversible in Polished Brass.
Standard 3 hinge door uses 2 Guide hinges and 1 Set hinge
Seamlessly retrofits a 4 X 4 one-step pocket route with 5/8 corner radius.

Hinge Type: Set - Vertical adjustment

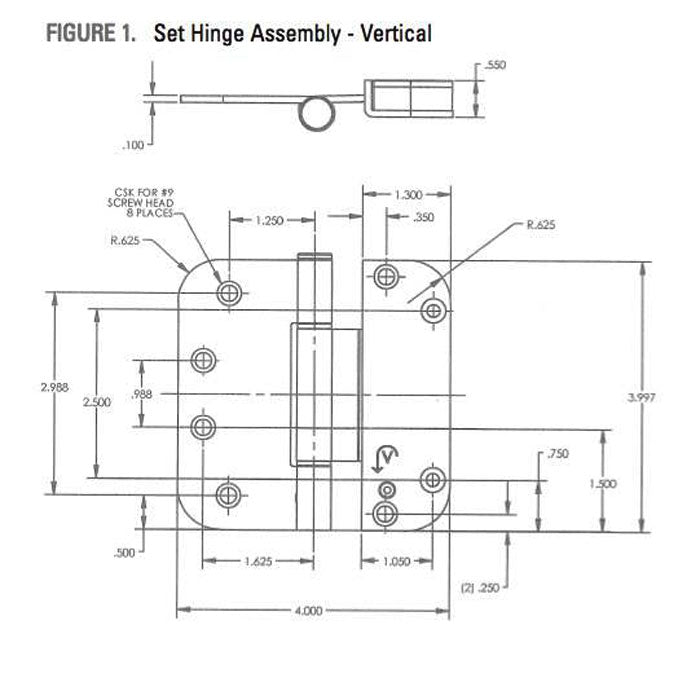

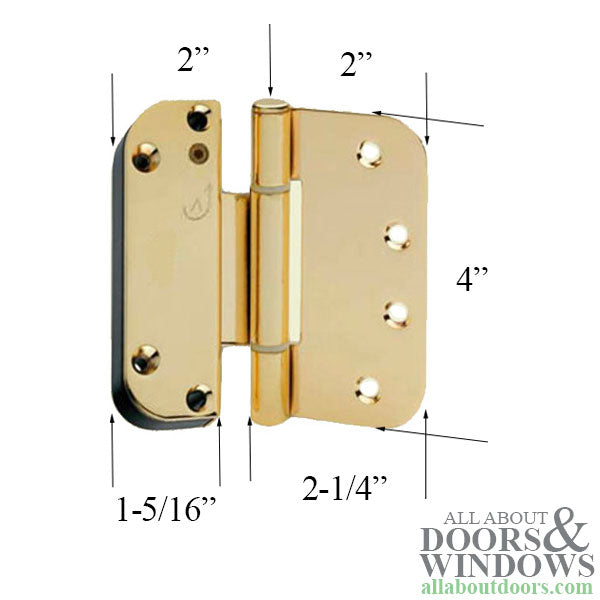

Hinge Size: 4 x 4
Corner: 5/8 Radius
Material: Brass Substrate (15)
Handed: NO - Removable Pin; Reversible for left or right hand doors

Color/Finish Options:
Brushed/Satin Nickel
Polished Brass
Antique Brass
Polished Chrome

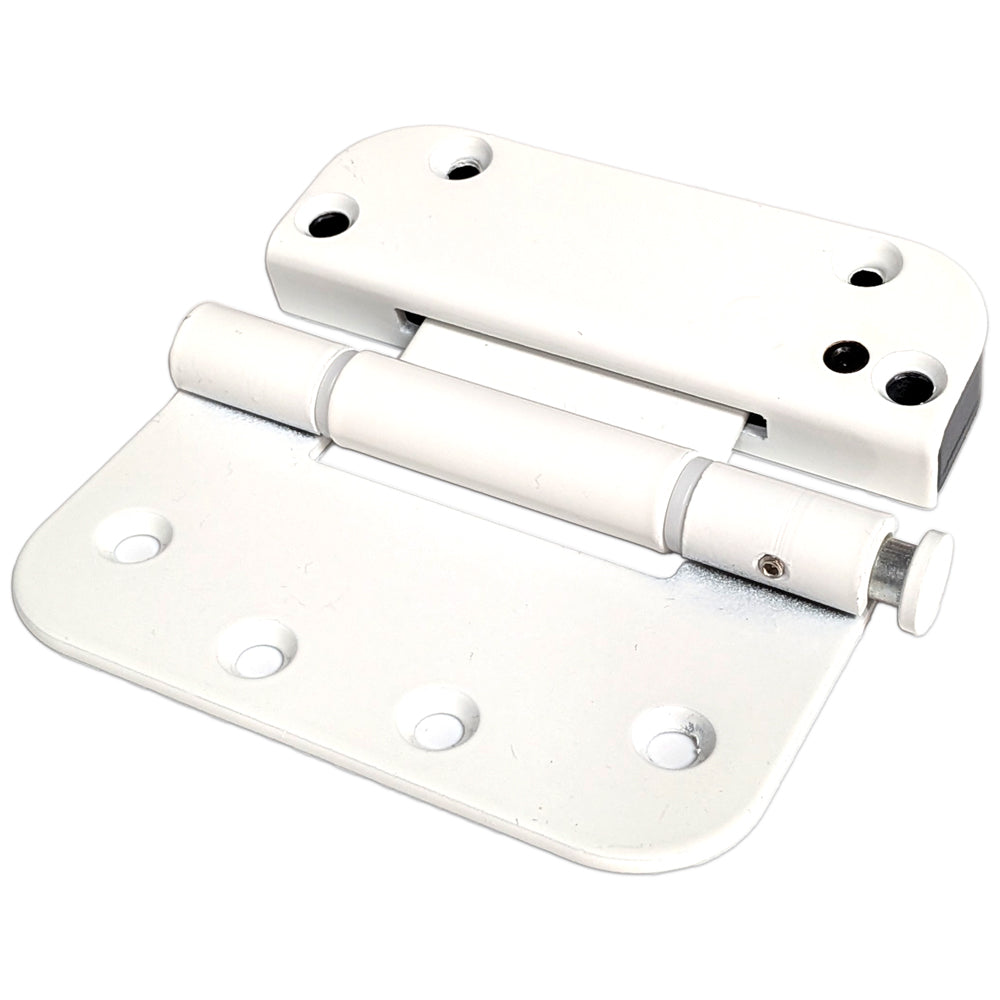

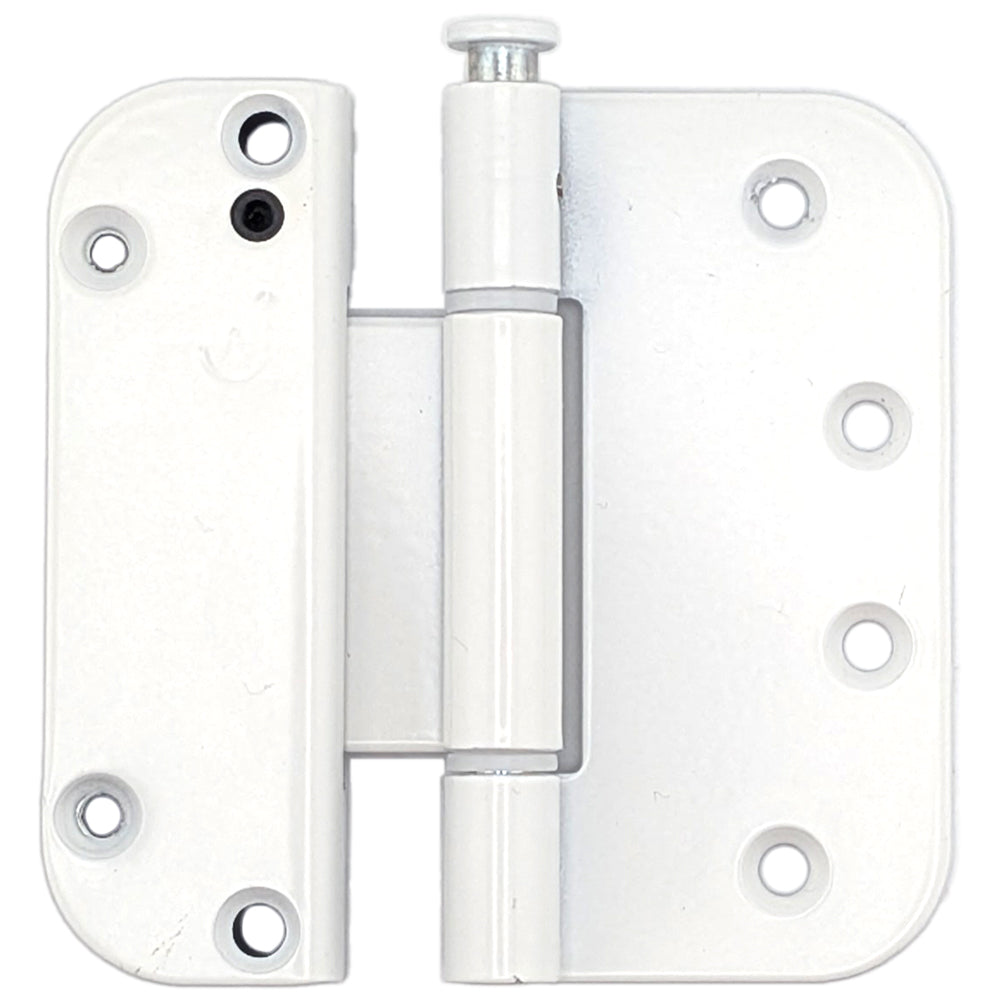

White
Brushed/Satin Chrome
Oil Rubbed Bronze
Antique Nickel / Pewter (limited to existing inventory) -Slightly darker than satin nickel

Hex head adjustment screws, not Phillips or Slotted, to provide secure tool engagement and prevent stripping during adjustment.
Screw hole locations optimized away from panel edge to prevent accidental wood splitting.
Panel leaf incorporates a unique shield to keep out debris and provide a premium appearance in the closed position.
Incorporates Teflon filled bushings for increased wear resistance.
Non-removable pin (NRP) option available for secure out-swing applications.

Adjusts 1/4” vertically and 3/16” horizontally.
Easily reversible for either left or right-hand hinge application.
Innovative, patent-pending adjustment mechanism achieves extremely low adjustment torque with a standard 3/32” hex wrench.
Exceeds BHMA – grade 3 standards for wood, vinyl, aluminum and steel doors.

Bushing blends with the hinge finish

Installation screws not included.
Each hinge will require
3: #9x1" flat head, wood screw for jamb wing
1: #9x3" flat head, wood screw for jamb wing
4: #9x1.5" flat head, wood screw for panel wing
