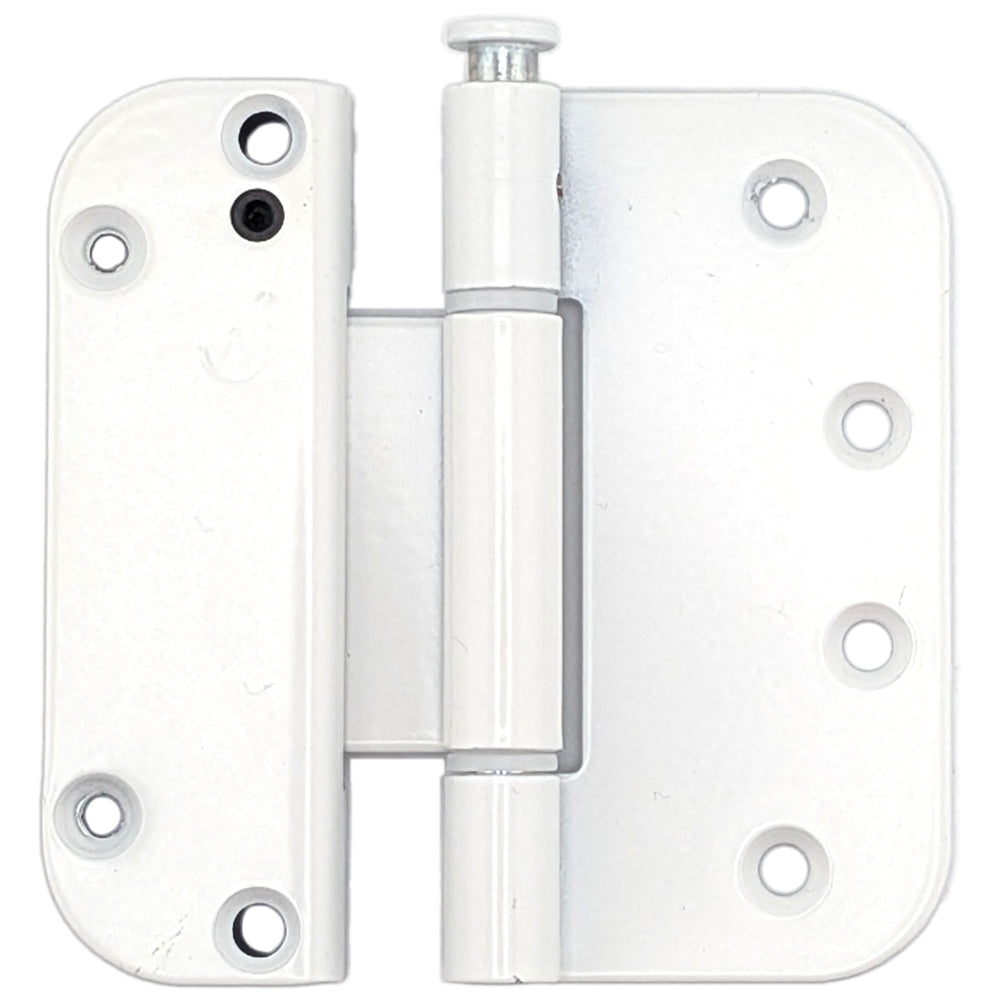

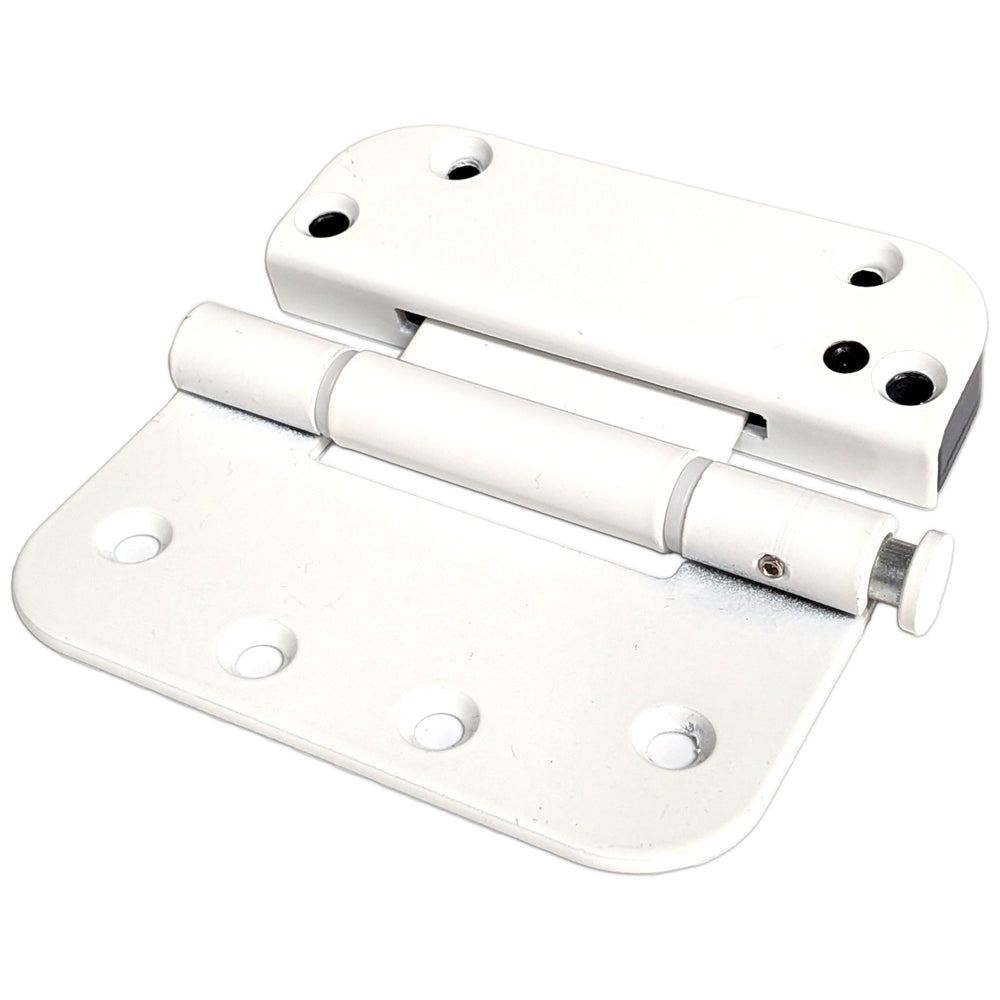

AmesburyTruth V400 Hinge

The V400 adjustable guide and set hinges provide vertical and horizontal adjustment for a perfect fit.

Seamlessly retrofits a 4" X 4" one-step pocket route with 5/8" corner radius. Recommended for: aluminum, composite, vinyl, and wood.

Easily reversible for either left or right-hand hinge applications.

Hex-head adjustment screws (not Phillips or slotted) to provide secure tool engagement and prevent stripping during adjustment.

Screw hole locations optimized away from panel edge to prevent accidental wood splitting.

Panel leaf incorporates a unique shield to keep out debris and provide a premium appearance in the closed position.

Incorporates Teflon-filled bushings for increased wear resistance. Bushing blends with the hinge finish.

Adjusts 1/4" vertically and 3/16" horizontally.

Innovative, patent-pending adjustment mechanism achieves extremely low adjustment torque with a standard 3/32" hex wrench.

Exceeds BHMA - Grade 3 standards for wood, vinyl, aluminum, and steel doors.
