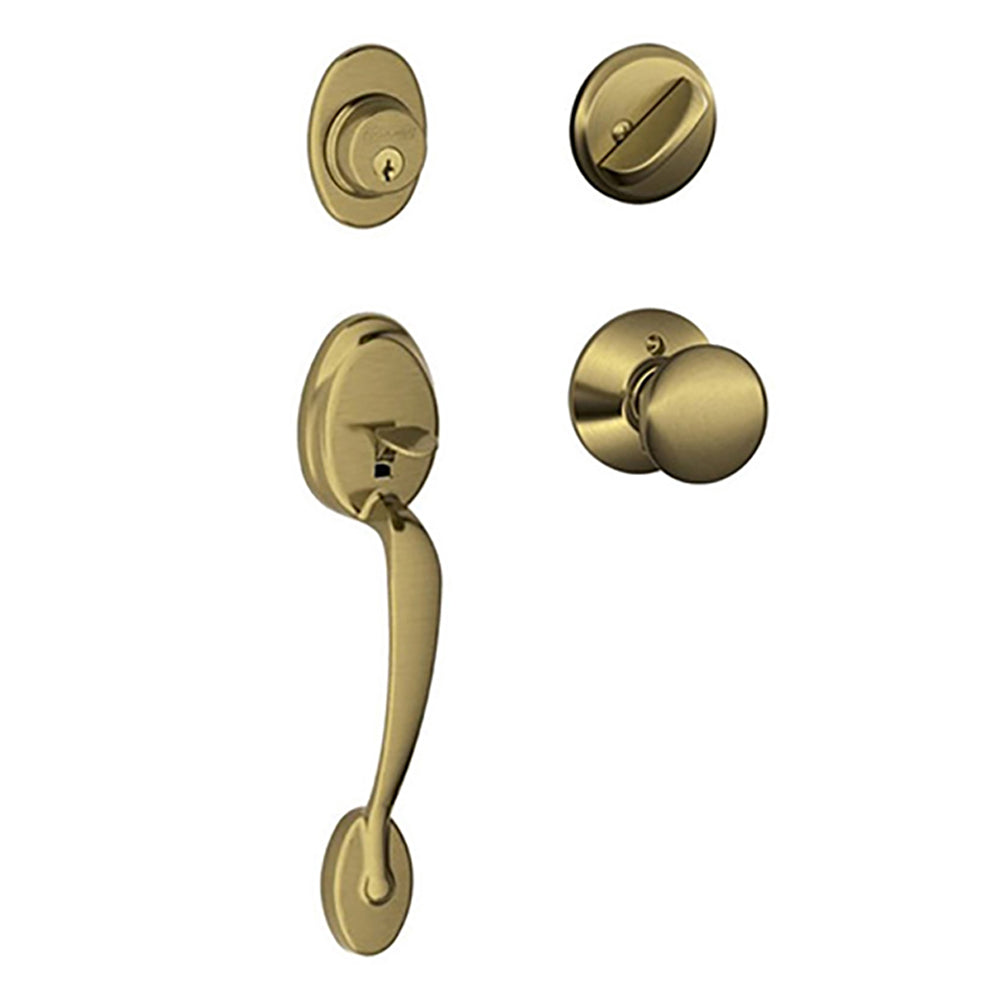

Van Ness Handleset by Better Home Products Crossbore 2 1/8 Inch Edge Bore 1 Inch
Part Number: Price: $28.13Discover the Van Ness handleset by Better Home Products, meticulously crafted with a crossbore of 2 1/8" and an edge bore of 1".

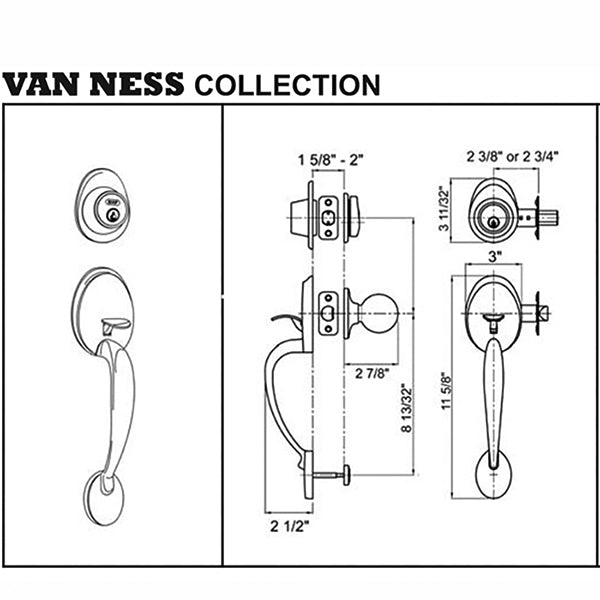

Door Prep:
Crossbore: 2 1/8"
Edge Bore: 1"
Latch Face: 1" x 2 1/4"
Bottom Bolt Hole: 3/8"
Door Thickness:
Standard: 1 5/8" to 2" With Optional Thick Door Kit: Up to 2 1/4"
Function:
Deadbolt: Locked or unlocked by key outside or turn-piece inside. Inside is always free.
Passage: Knob and thumb latch are always free.
Strikes:
1 Pc 1" x 2 1/4" radius corner for Deadbolt
1 Pc full lip radius corner for Deadbolt
1 Pc full lip radius corner for Passage
Latches:
Deadbolt: 1 Pc 1" throw radius corner, adjustable from 2 3/8" to 2 3/4"
Passage: 1 Pc 1/2" throw 2 3/8" and 1 Pc 2 3/4" radius corner latch
Door Handing:
Adjustable
Interior Trim:
Standard: Ball knob
Fits all other BHP knob and lever trim
Available Finish:
Antique Brass
