Vinci Surface-Mounted Mechanical Code Lock for Gates

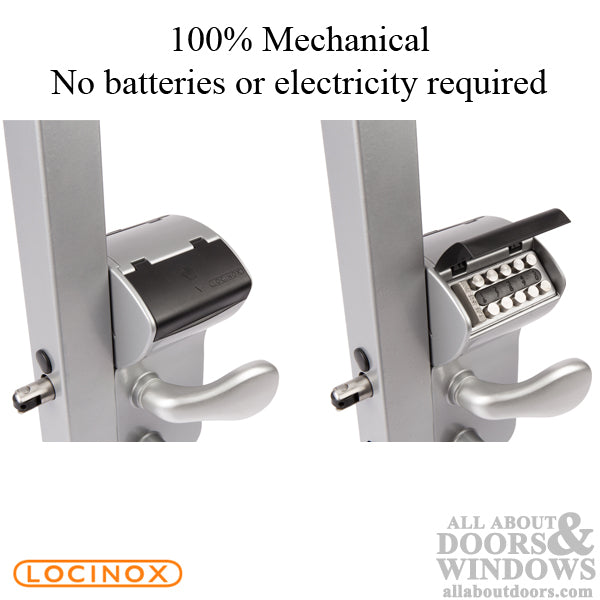

100% mechanical: no batteries or electricity required

Manufactured by Locinox

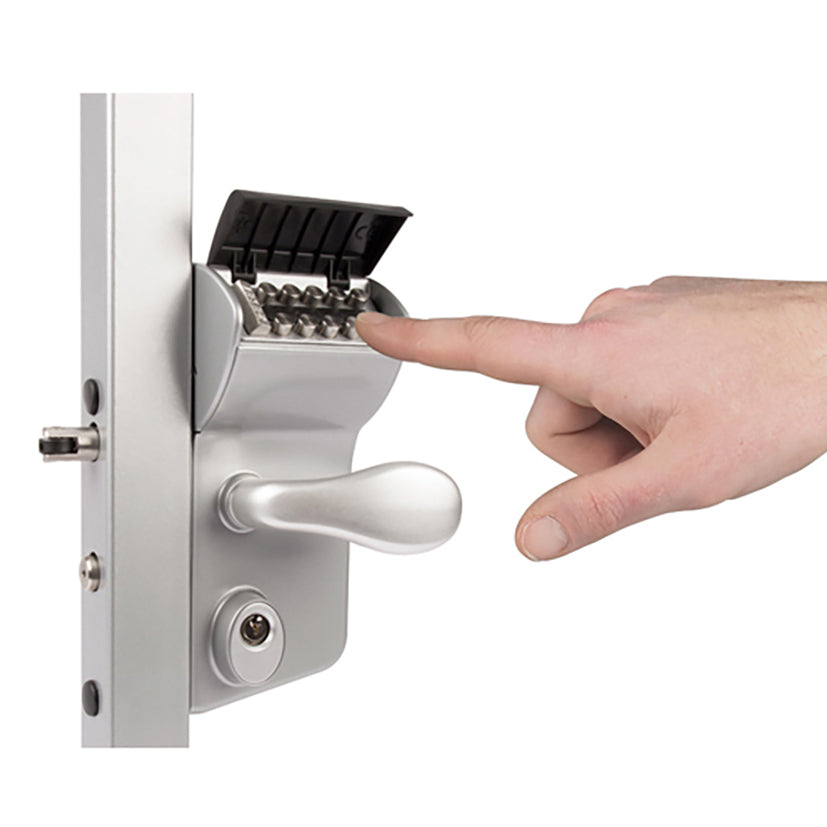

- Features operational code lock on both sides
- Each side can be programmed with a different code if desired
- Code automatically resets when handle is engaged - no lag time allows for secure entry and exit
- Stainless steel mechanism with aluminum housing and polyamide cover
- Interchangeable with all Locinox locks
- Deadbolt overrides control panel if needed
- Latch and deadbolt both have 3/4" continuous adjustment to ensure perfect alignment

3 Year warranty provided by manufacturer

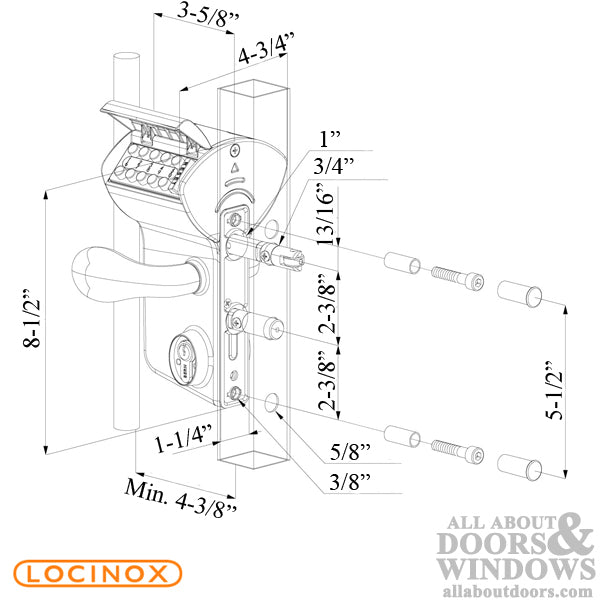

Mounting Options (Mounts to):
- Flat 3/8" - 1-1/4" Profile
- Square 1-1/4" - 2" Profile
- Square 1-1/2" - 2-1/2" Profile
- Square 2-1/2" - 3" Profile
- Square 3" - 4" Profile
- Square 4" - 4-3/4" Profile

Color Options:
- RAL 9005 (Black)
- Silver

Related Parts:
Compatible Strike Plate: SAKL Adjustable Strike for Gate Locks
Compatible Strike Plate: SH-KL Adjustable Strike for Gate Locks with Mushroom
One-Sided Code Lock: FREE-VINCI Code Lock with Free Exit

Resources:
PDF: Installation Instructions + Operation Guide
Video: Installation Guide by Locinox
