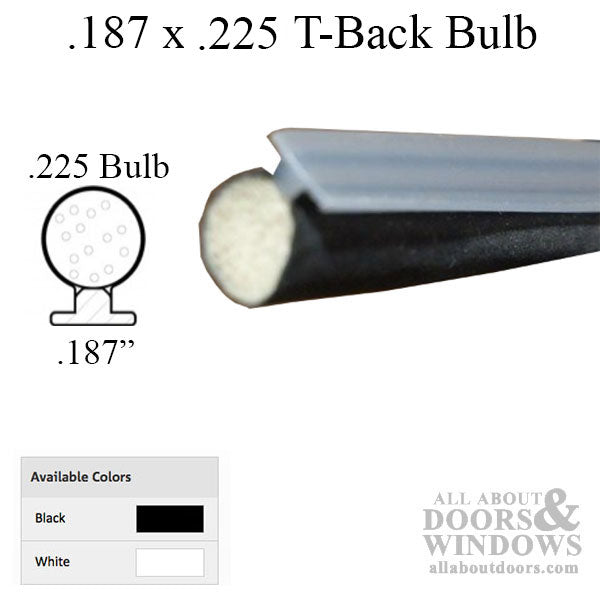

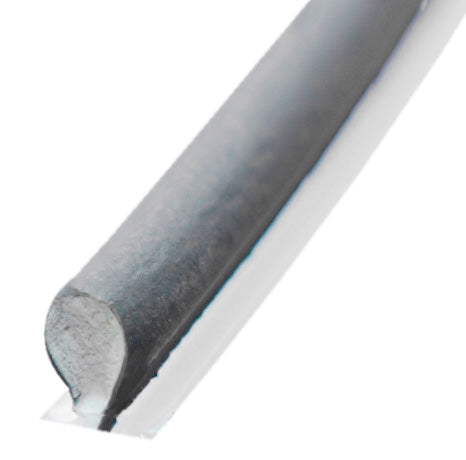

Slide-in Foam-Tite T-Slot Mount Seal .187 backing x.300 overall height

Specifications

Profile: 32007

Type: T-Slot, Foam Filled Bulb

Description: T-Slot Mount Seal - Foam-Tite Seal

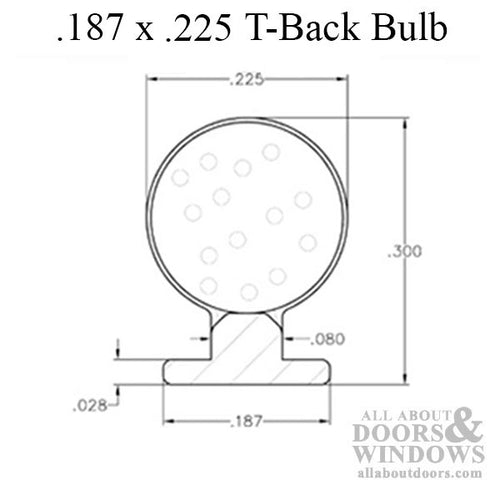

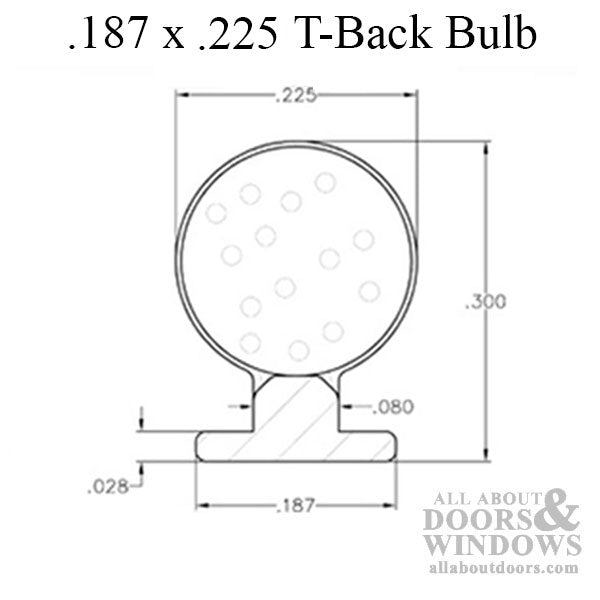

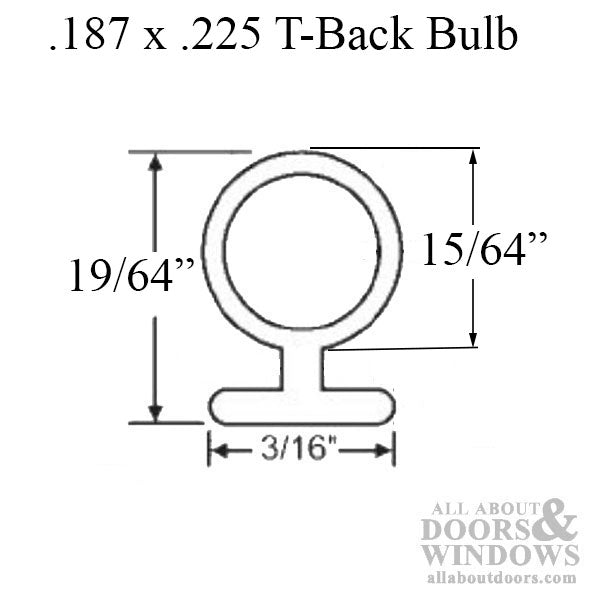

Backing Width:  .187   (4.7mm)  3/16 inch

Profile Height: .300 (7.62mm) or 19/64 inch bulb is about 5/16 inch in diameter

Overall Size:  .187 x .300 (4.7 x 7.62mm)

Bulb Diameter: .225  (5.715mm) 15/64 inch

Color: Black

Length: Sold by the foot

Special Features: Seamless compression seals are nearly 100% closed cell to prevent water from penetrating foam cell structure. Extruded skin provides a unique UV resistant barrier with design features that enhance the weather strip's sealing performance. All of Foam-Tite's products are CFC and Phthalate free.

Compression: Recommend Recommended = 25% Minimum = 10% Maximum = 50%    Minimum Maximum

Upright foam profile with .187" base width

Reach = .300" For t-slots with width of .210" / Depth .050".
