Windsor Metal & Plastic Tilt Latch, Double Hung, Right Hand-
Use the arrows or swipe left to view all images for this product
Windsor Metal & Plastic Tilt Latch, Double Hung, Right Hand-
Part Number: $8.71Metal & Plastic Tilt Latch, Double Hung, Right Hand
Combination vinyl and metal construction.
Held in place with screw when latch is retracted.
Used by Several companies including Windsor on their Pinnacle Series window
Application: Double hung windows, Top or Bottom Sash

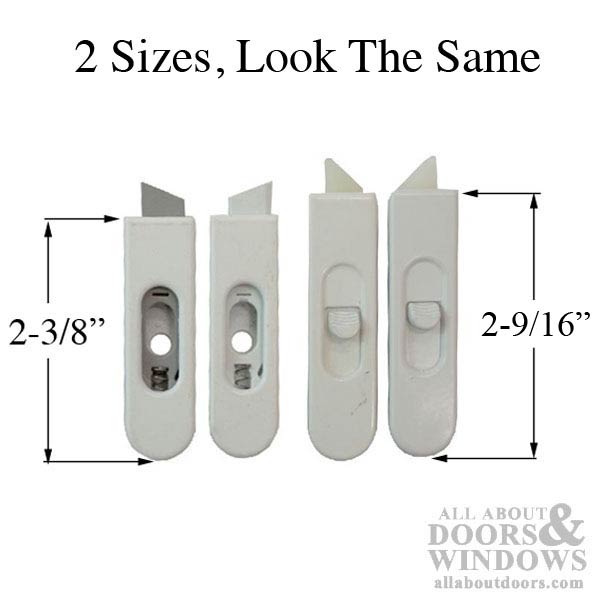

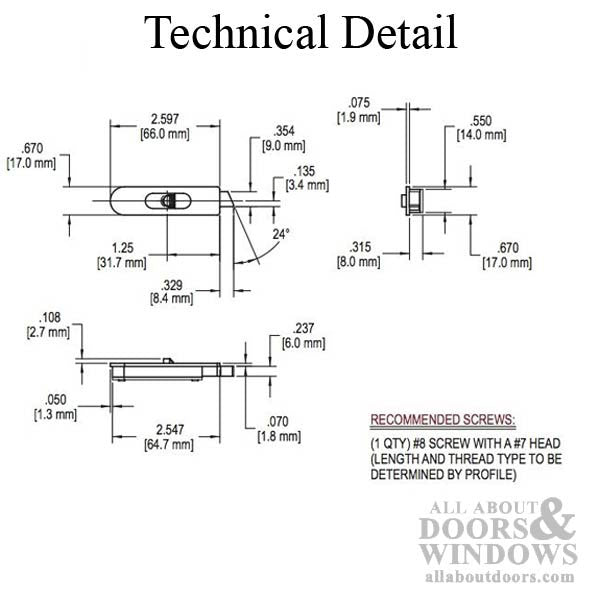

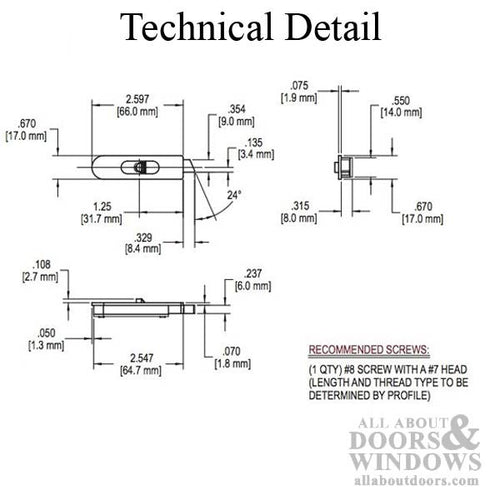

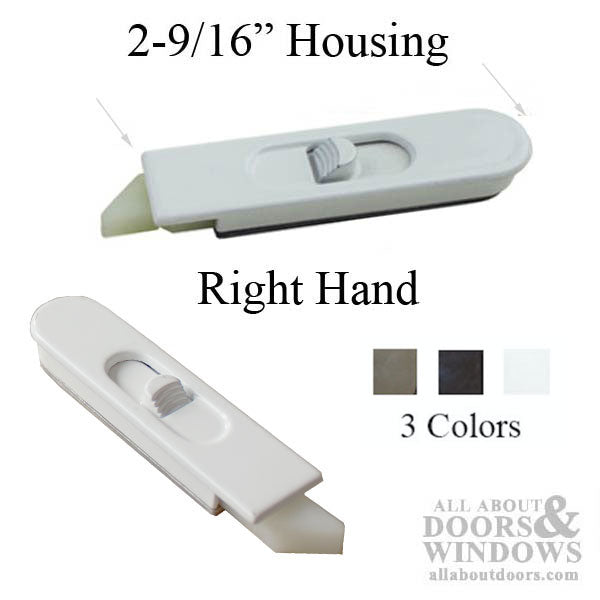

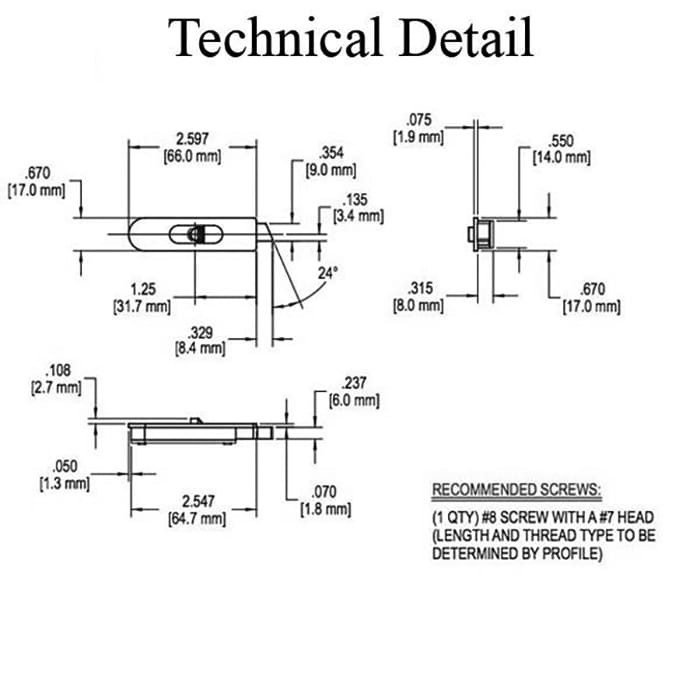

Housing Length: 2-9/16 inch
Housing Width: 11/16 inch
Housing Thickness 3/8 inch
Latch projection 5/16 inch.

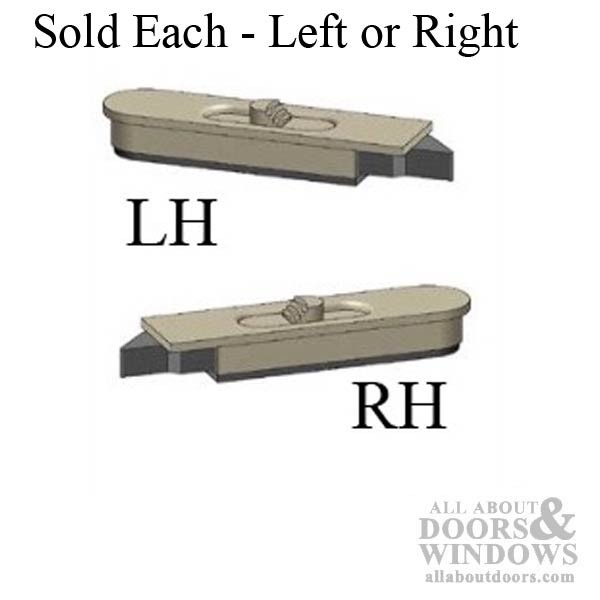

Handed: Yes, Left and Right as shown

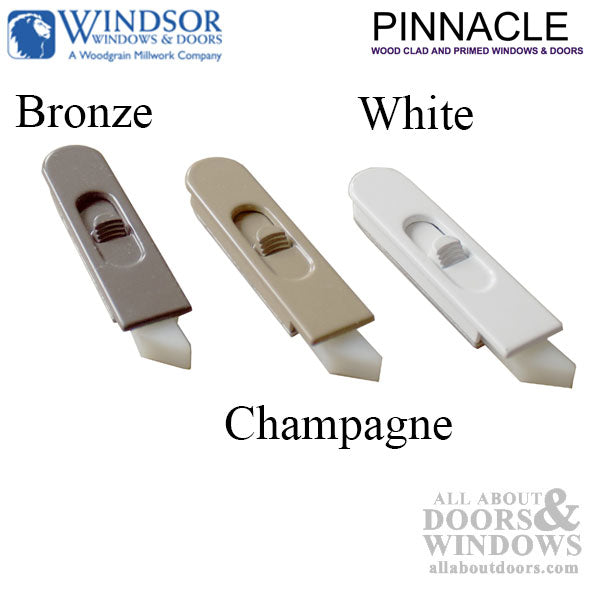

Colors: White , Bronze and Champagne standard, others colors available special order
Material: Metal & Plastic
Markings: 4262 on Reverse
Priced and sold Each

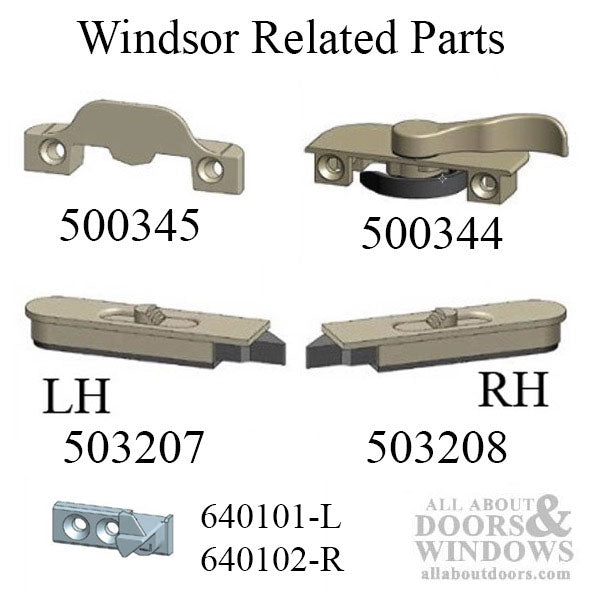

Related Windsor Parts:
500344 - Sash Lock
500345 - Keeper
503087 - Tilt Latch, Left
503208 - Tilt Latch, Right
640101 - Tilt Pin, Bottom Left
640102 - Tilt Pin, Bottom Right
