Winkhaus Cobra STV-F1660 LO3/55 92/8 M2 RS MC
Winkhaus European style MPL Lock System with Hooks - Active Panel
Markings on Faceplate: Wink Haus

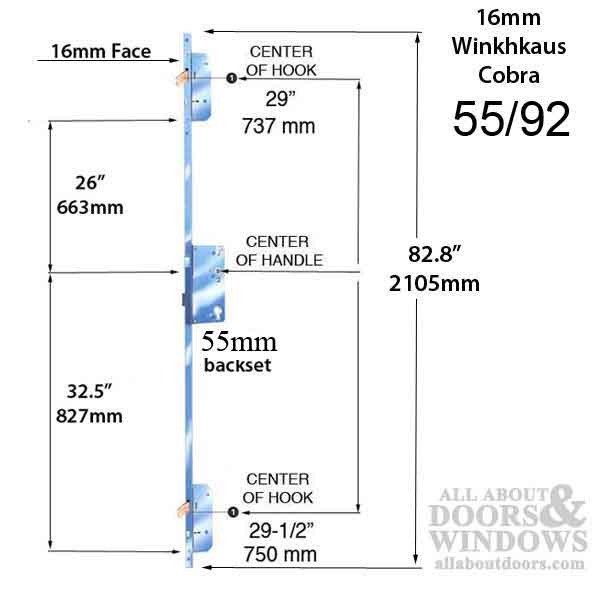

All hook Measurements are from Center of Handle to center of hook
Top Hook Position: 29 inches
Bottom Hook Location: 29-1/2 inches (750mm)

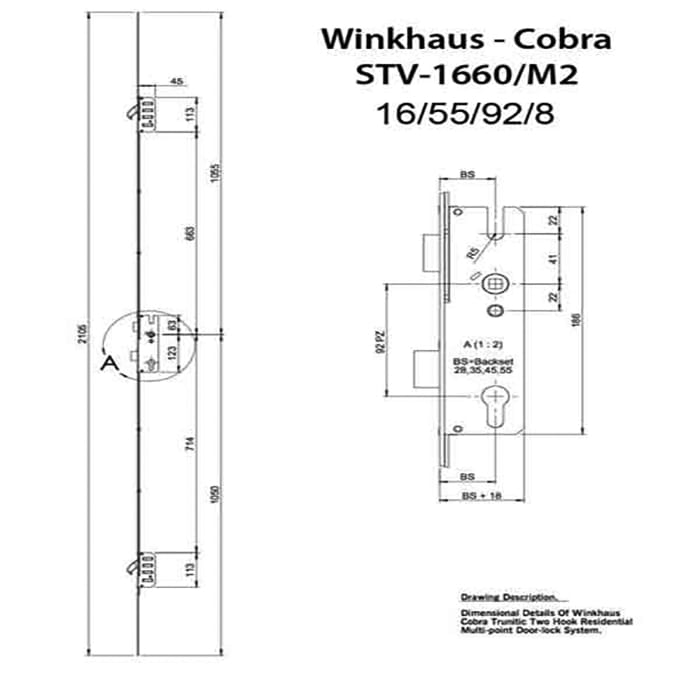

NOTE: Winkhaus measures to bottom of hook case - see additional pictures
Handle Height: Croppable from 34 to 41.321 inches
Faceplate Color: Stainless Steel
Face Plate width: 5/8 inch (16mm)
Lock Backset: 2-3/16 inch ( 55mm)
Handle to cylinder Spacing: 3-5/8 inch (92mm)
Spindle Diameter: 5/16 inch (8mm)
Cylinder type: Euro / Profile - Standard Schlage keyway

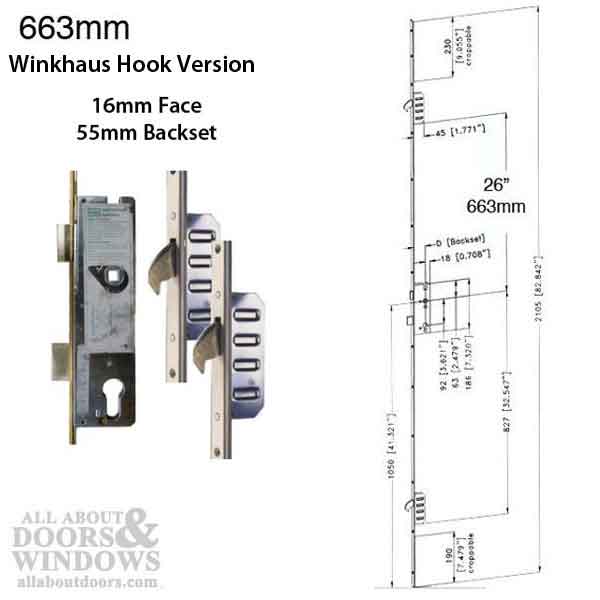

Overall length of lock = 82.842"
Lock is cropple at top or bottom for different door and handle heights
Desired Length = 79" 82.842 - 79 = 3.842" cutoff
Current Handle Height = 41.321" 41.321 - 3.842 = 37.479" (37.5") New Handle Height = 37.5"
New Height of Door = 79"
Or could cut the bottom down to match the desired handle height of 36" and then use the cut off piece as a filler piece on the top of the door.
WinkHaus European style MPL Lock System with Hooks Active Panel with 20mm Faceplate, 1-3/4" (45mm) Backset, 82" (2105mm) overall length and 41" (1050mm) handle height. These are Croppable to adjust handle height. Dimensions: Center of Handle to Center of TOP Hook 29 inches (737mm) ( unlocked ) Center of Handle to Center of BOTTOM Hook 29-1/2 inches (750mm) European style MPL
IE: Overall length of lock = 82.842" Desired Length = 79" 82.842 - 79 = 3.842"
Current Handle Height = 41.321" 41.321 - 3.842 = 37.479" (37.5") New Handle Height = 37.5"
New Height of Door = 79"
Or could cut the bottom down to match the desired handle height of 36" and then use the cut off piece as a filler piece on the top of the door.

Operation - Key Operated
The handle operates only the latch
To extend and retract deadbolt or hooks the thumbturn must be turned multiple times.
