Winkhaus 2 Hook Multi-Point Lock for Sliding Patio Door 28mm Lock Backset Length

Part Number:15122 Price: $200.83

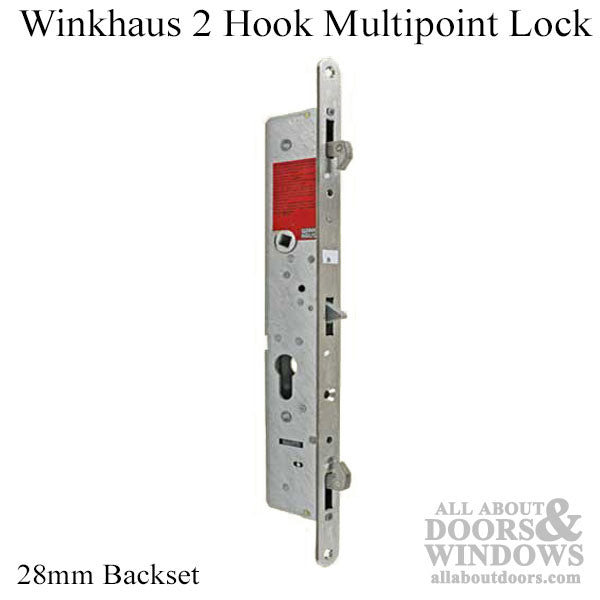

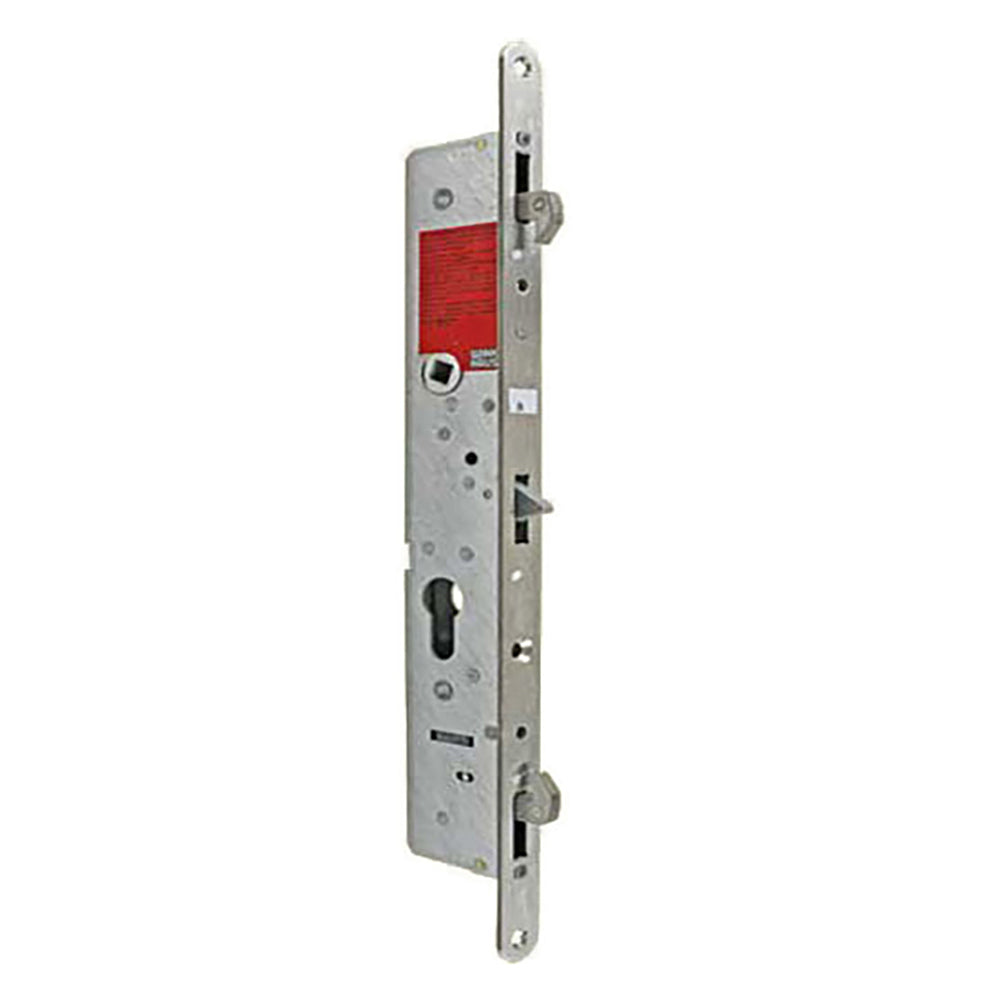

Winkhaus 2 hook multipoint lock for sliding patio door with 28 mm backset

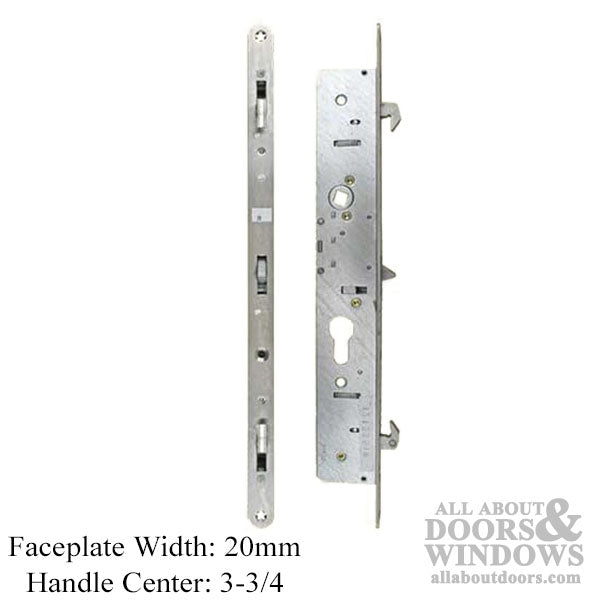

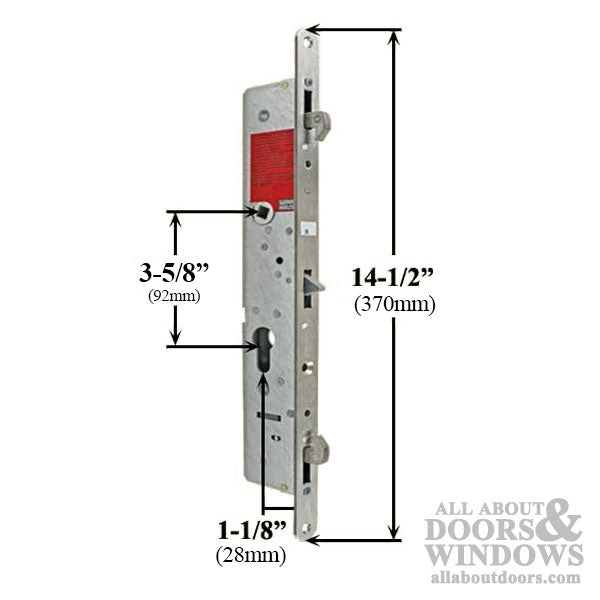

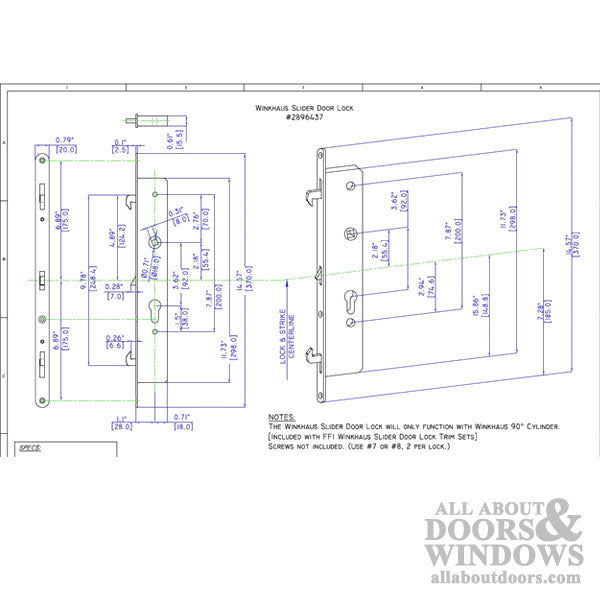

Faceplate Width: .787 (20 mm) 3/4 inch
Faceplate Length: 14.57 (370mm) 14-1/2 Inch
Lock Backset : 1.102 (28mm) 1-7/64 inch
Lock Center: 3.62 (92mm) 3-5/8 Inch
Lock Spindle Hub: .3149 ( 8 mm) 5/16 inch square
Faceplate Material: Stainless Steel 304 Grade Brushed

Contents: 1 Multi-Point Lock with 2 hooks

Handlesets to use with this lock: Winkhaus Sliding Patio Door Handles

Priced and sold each.
Winkhaus 2 hook multipoint lock for sliding patio door with 28 mm backset <br/>

<br/>

Faceplate Width: .787 (20 mm) 3/4 inch<br/>

Faceplate Length: 14.57 (370mm) 14-1/2 Inch<br/>

Lock Backset : 1.102 (28mm) 1-7/64 inch<br/>

Lock Center: 3.62 (92mm) 3-5/8 Inch<br/>

Lock Spindle Hub: .3149 ( 8 mm) 5/16 inch square <br/>

Faceplate Material: Stainless Steel 304 Grade Brushed<br/>

<br/>

Contents: 1 Multi-Point Lock with 2 hooks<br/>

<br/>

Handlesets to use with this lock: <a href="/Products/Multipoint-Lock-Handleset-Trim/Winkhaus-Multipoint-Lock-Trim/Winkhaus-Sliding-Patio-Door-Handles" target="_blank">Winkhaus Sliding Patio Door Handles<a><br/><br/>

Priced and sold each.
