Wolverine Active 45/92 New Breed Shootbolt Door Lock- Silver Ferguard

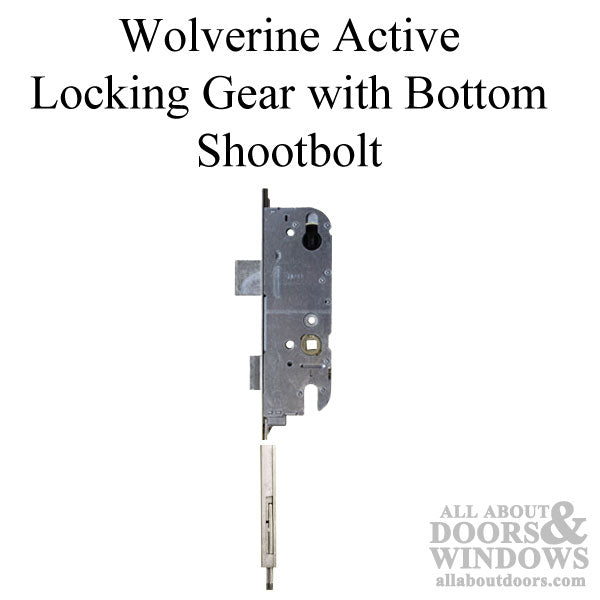

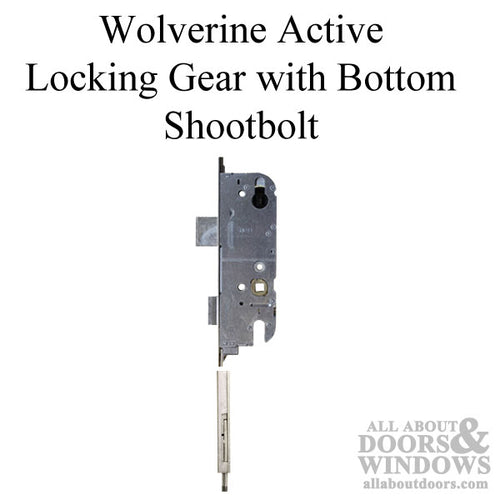

Part Number: Price: $260.26G-U Wolverine 2 Point Door Locking Gear with Bottom Shootbolt
(Does not include the Top Shootbolt) - SOLD Separately
Series: New Breed - 2 Point Door Locking Gear w/Bottom Shootbolt Only

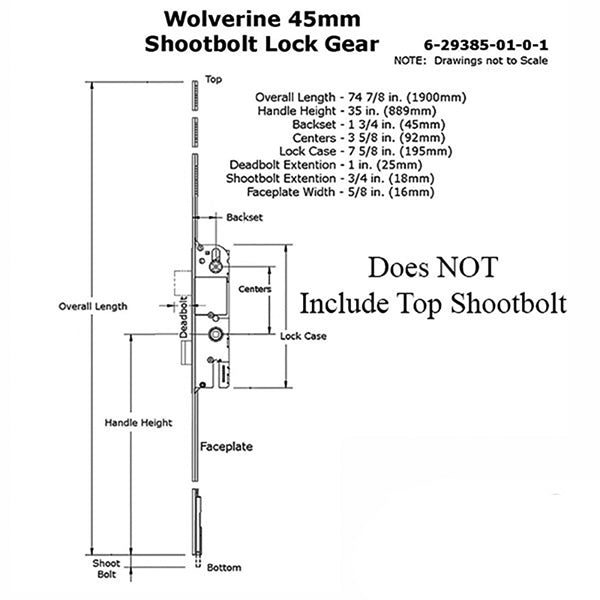

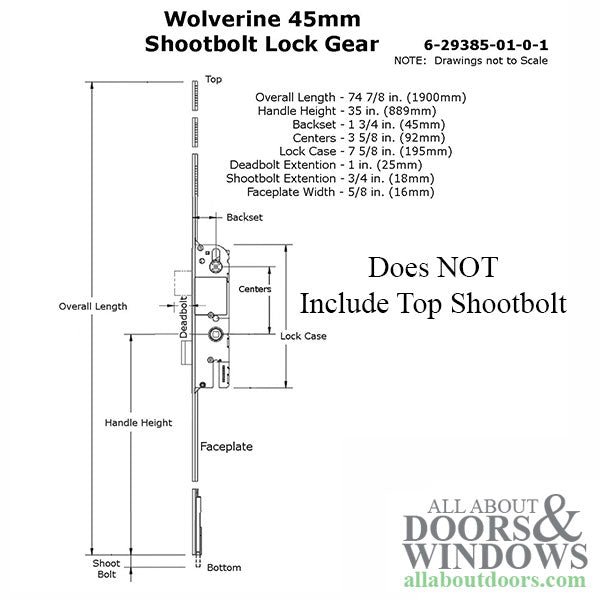

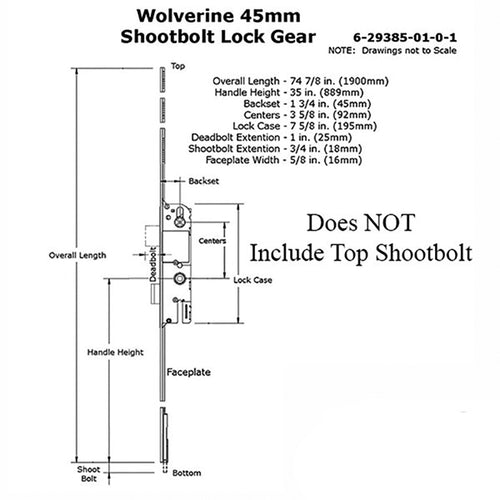

Handle to Cylinder Spacing (Centers): 3-5/8 inch (92mm)
Cylinder: US-Cylinder system with a 90 degree turn of key or thumbturn.
Handle Position: Key above Handle (New Breed)
Function: Shootbolt version - Shootbolts extend Vertically into door panel.
Backset: 1 3/4 inch (45mm)
Faceplate Width: 5/8 inch (16mm)
Faceplate Finish: Silver - Also available in Stainless Steel
Handle Height: Normally used with 35 Inches (889mm) Handle Height
Spindle Size: 8mm Square
Related G-U Parts:
Wolverine 2 Point Lock Gear in Silver - 6-29385-01-0-1
Wolverine 2 Point Lock Gear in Stainless Steel - 6-29385-11-0-8 ( non-Stock)
Reversing gear (Top Shootbolt) - G-16798-00-0
500 mm Extension Arm w/o Lock Point in Silver - G-16790-05-0-1
Brass sleeve, 10mm I.D. 9-29525-00-0-0
Brass sleeve, 12mm I.D. 9-33342-00-0-0
Screws, Hardware installation 6-U0050-00-0-2
The Wolverine 3-point locking system features double reinforced shoot bolts, top and bottom for maximum security and protection against warping of the door panels.
Also featured is our 90 degree locking mechanism that incorporates a standard US cylinder offering a variety of Schlage ñCî keyway systems
Key Features:
´ 1 inch (25.4 mm) throw on deadbolt
´ 3-point, height adjustable, locking system
´ Double reinforced shoot bolts, top and bottom, deadbolt and latch
´ US design with deadbolt located above lever
´ Extensions are available for taller doors
´ Lever controlled engaging and releasing of shoot bolts and latch
´ Locking by US-Cylinder system with a 90 degree turn of key or thumbturn
´ Non-handed, latch easily reversible
´ Heavy duty mortise construction with reinforced lever return spring system
´ Available in standard finish and 300 series stainless steel
´ Same hardware groove detail throughout our entire door lock program (router bits available)
To Identify a Multipoint Door Lock
1. Check for manufactures stamp on the lock strip
2. Measure the width of the lock strip
3. Measure the Backset
4. Measure the Center points
5. What locking types are on the strip? (Mushroom, Deadbolt, Hook, ect.)
6. How many of those locking types are on the strip?
7. What color is the lock? (Silver, Stainless Steel, ect.)
8. Is the door UPVC, Aluminium, Composite or Wood?
(Does not include the Top Shootbolt) - SOLD Separately
Series: New Breed - 2 Point Door Locking Gear w/Bottom Shootbolt Only
Handle to Cylinder Spacing (Centers): 3-5/8 inch (92mm)
Cylinder: US-Cylinder system with a 90 degree turn of key or thumbturn.
Handle Position: Key above Handle (New Breed)
Function: Shootbolt version - Shootbolts extend Vertically into door panel.
Backset: 1 3/4 inch (45mm)
Faceplate Width: 5/8 inch (16mm)
Faceplate Finish: Silver - Also available in Stainless Steel
Handle Height: Normally used with 35 Inches (889mm) Handle Height
Spindle Size: 8mm Square
Related G-U Parts:
Wolverine 2 Point Lock Gear in Silver - 6-29385-01-0-1
Wolverine 2 Point Lock Gear in Stainless Steel - 6-29385-11-0-8 ( non-Stock)
Reversing gear (Top Shootbolt) - G-16798-00-0
500 mm Extension Arm w/o Lock Point in Silver - G-16790-05-0-1
Brass sleeve, 10mm I.D. 9-29525-00-0-0
Brass sleeve, 12mm I.D. 9-33342-00-0-0
Screws, Hardware installation 6-U0050-00-0-2
The Wolverine 3-point locking system features double reinforced shoot bolts, top and bottom for maximum security and protection against warping of the door panels.
Also featured is our 90 degree locking mechanism that incorporates a standard US cylinder offering a variety of Schlage ñCî keyway systems
Key Features:
´ 1 inch (25.4 mm) throw on deadbolt
´ 3-point, height adjustable, locking system
´ Double reinforced shoot bolts, top and bottom, deadbolt and latch
´ US design with deadbolt located above lever
´ Extensions are available for taller doors
´ Lever controlled engaging and releasing of shoot bolts and latch
´ Locking by US-Cylinder system with a 90 degree turn of key or thumbturn
´ Non-handed, latch easily reversible
´ Heavy duty mortise construction with reinforced lever return spring system
´ Available in standard finish and 300 series stainless steel
´ Same hardware groove detail throughout our entire door lock program (router bits available)
To Identify a Multipoint Door Lock
1. Check for manufactures stamp on the lock strip
2. Measure the width of the lock strip
3. Measure the Backset
4. Measure the Center points
5. What locking types are on the strip? (Mushroom, Deadbolt, Hook, ect.)
6. How many of those locking types are on the strip?
7. What color is the lock? (Silver, Stainless Steel, ect.)
8. Is the door UPVC, Aluminium, Composite or Wood?
